Colt Firearms Collector



1911 - 1922

Colt .45 Government Model Automatic Pistol Original Handbook

Form: M-50-R (Later)



See the Earlier version here



Colt Automatic Pistol catalog/handbook for the Caliber 45 Government Model.  It measures 4 3/16 x 8 inches when closed. When opened, the page unfolds to 8 inches wide. There are 8 double pages which picture the pistol, give a schemata, describe its function and other topics.



Be careful, there are lots of fakes on eBay for this handbook.  Pay attention to the back of the handbook and the printer logo "T.F. Rady", there is an error in the Colt Book in that the Rady is mis-spelled in the book on page 412.

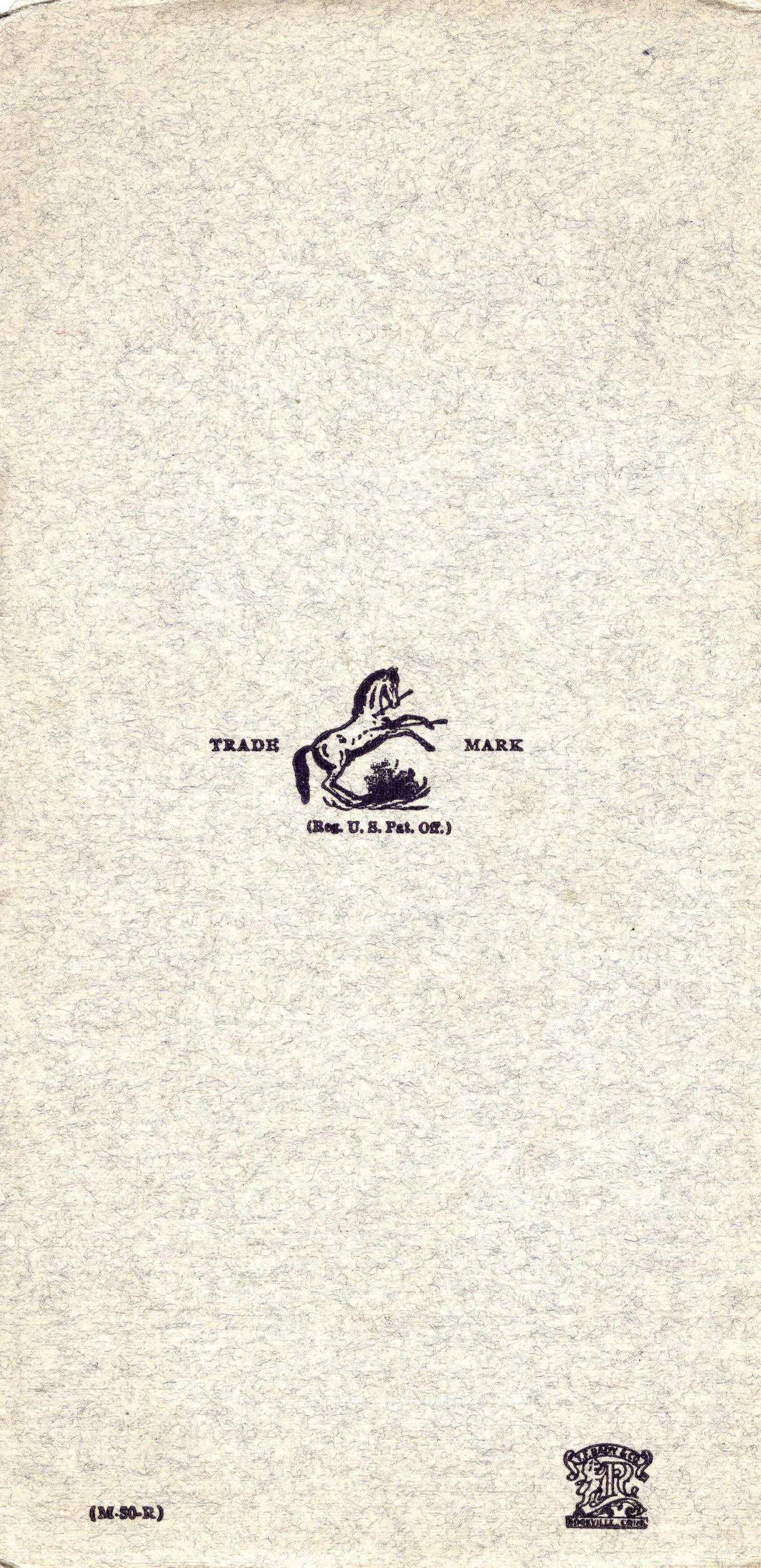

 Colt .45 Government Model Automatic Pistol Catalog cover  Colt .45 Government Model Automatic Pistol back side

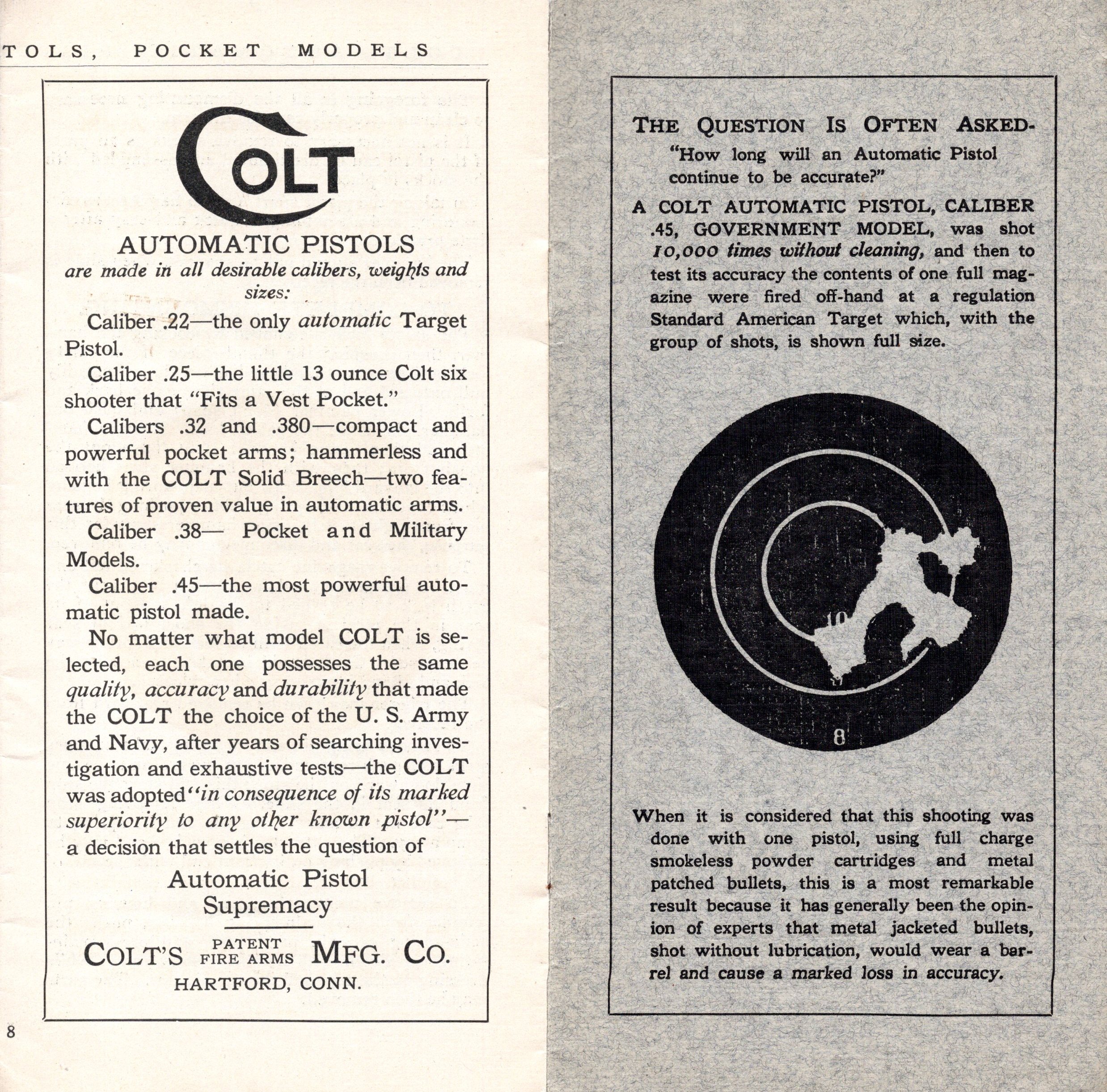

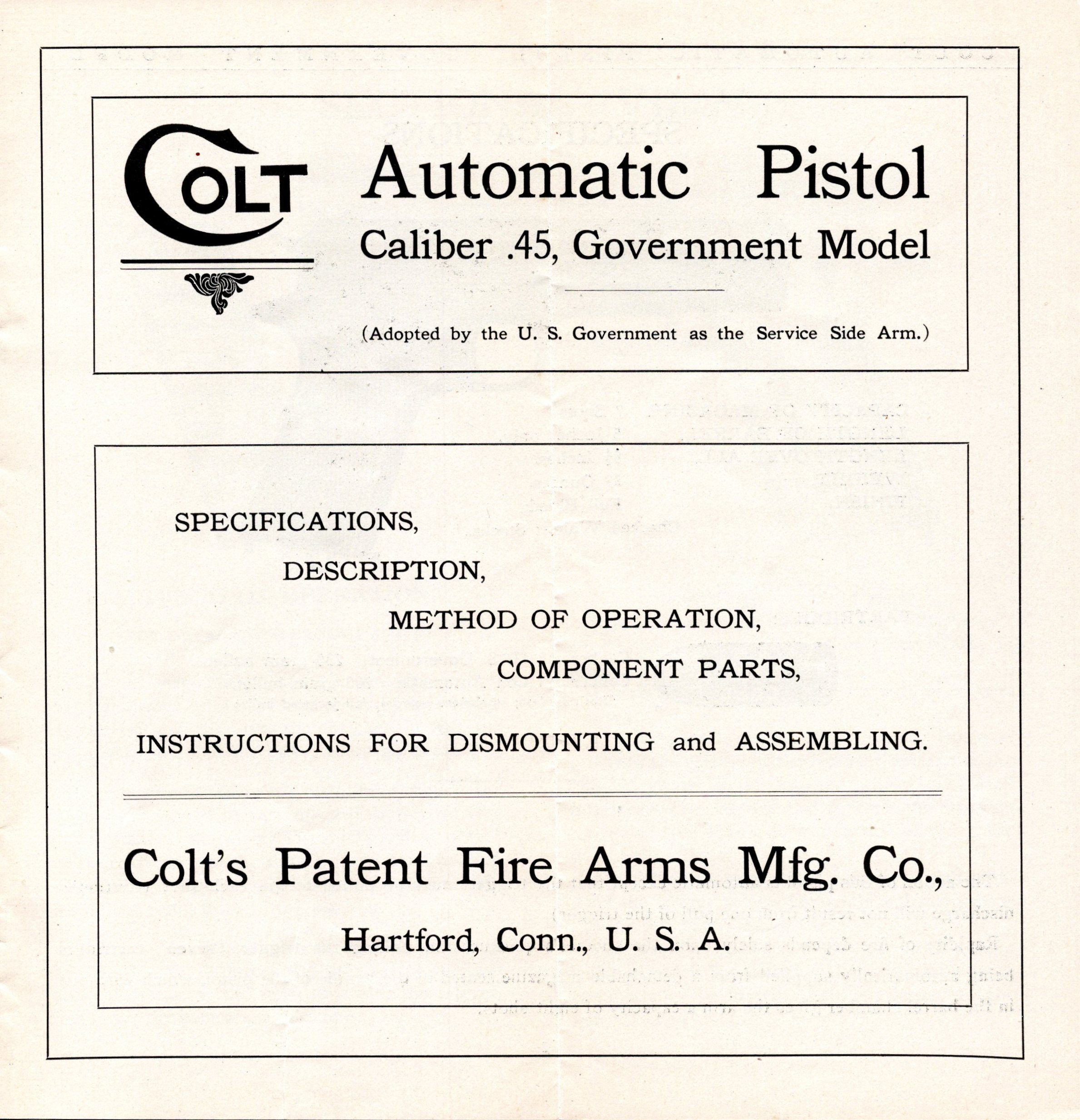

Colt Model Automatic Pistols with images-1  Colt Automatic Pistol catalog for the Caliber 45 Government Model inside-2

Colt Automatic Pistol sectional view   Colt Automatic Pistol specifications for the Caliber 45 Government Model-3

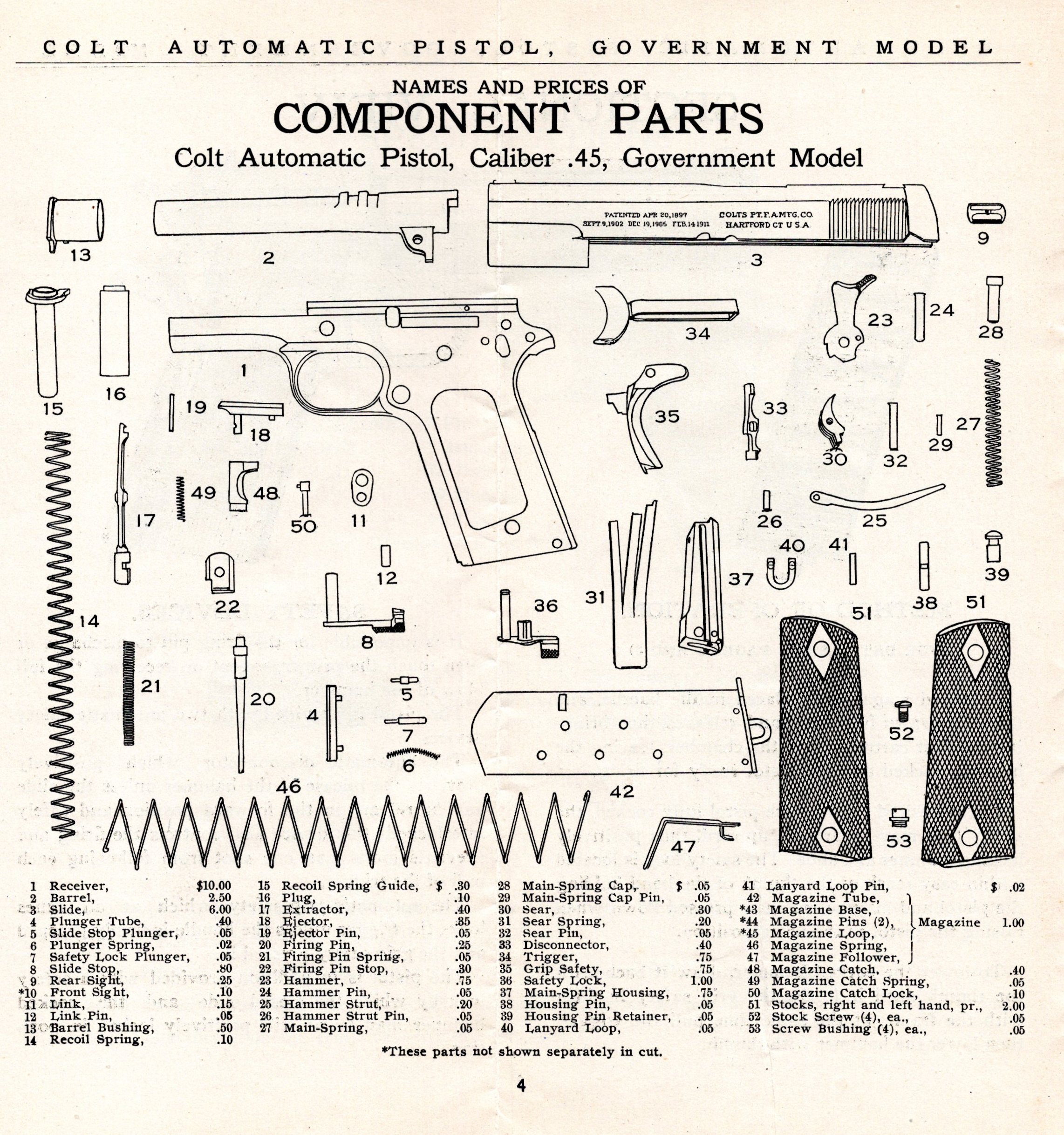

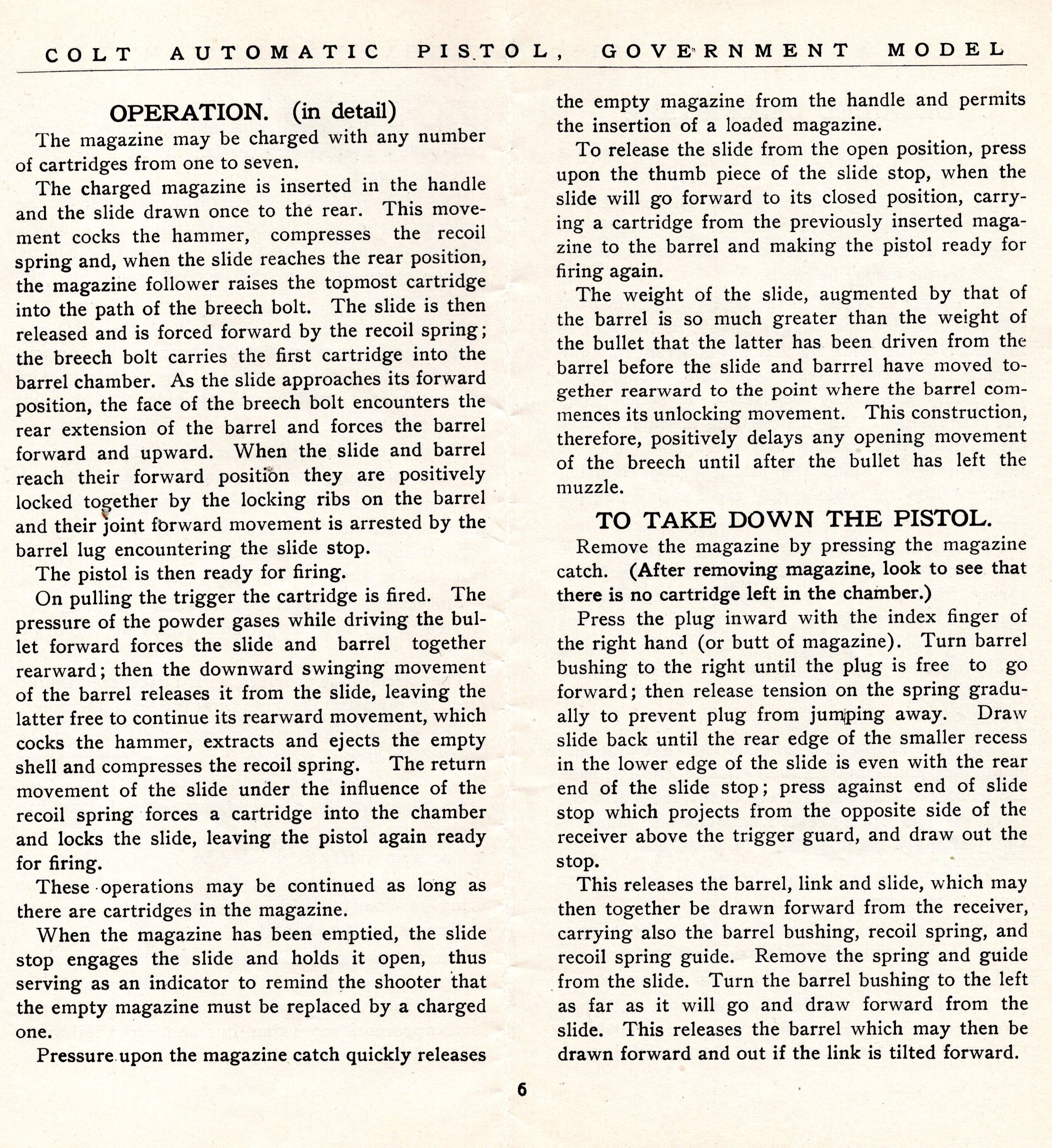

Colt Automatic Pistol parts for the .45 Government Model-5  Colt .45 Automatic Pistol instructions page 6

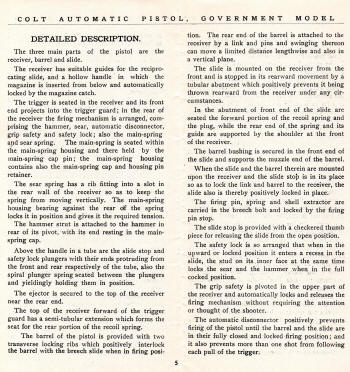

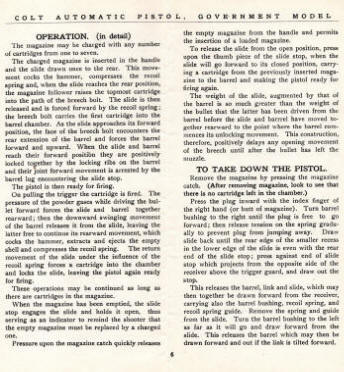

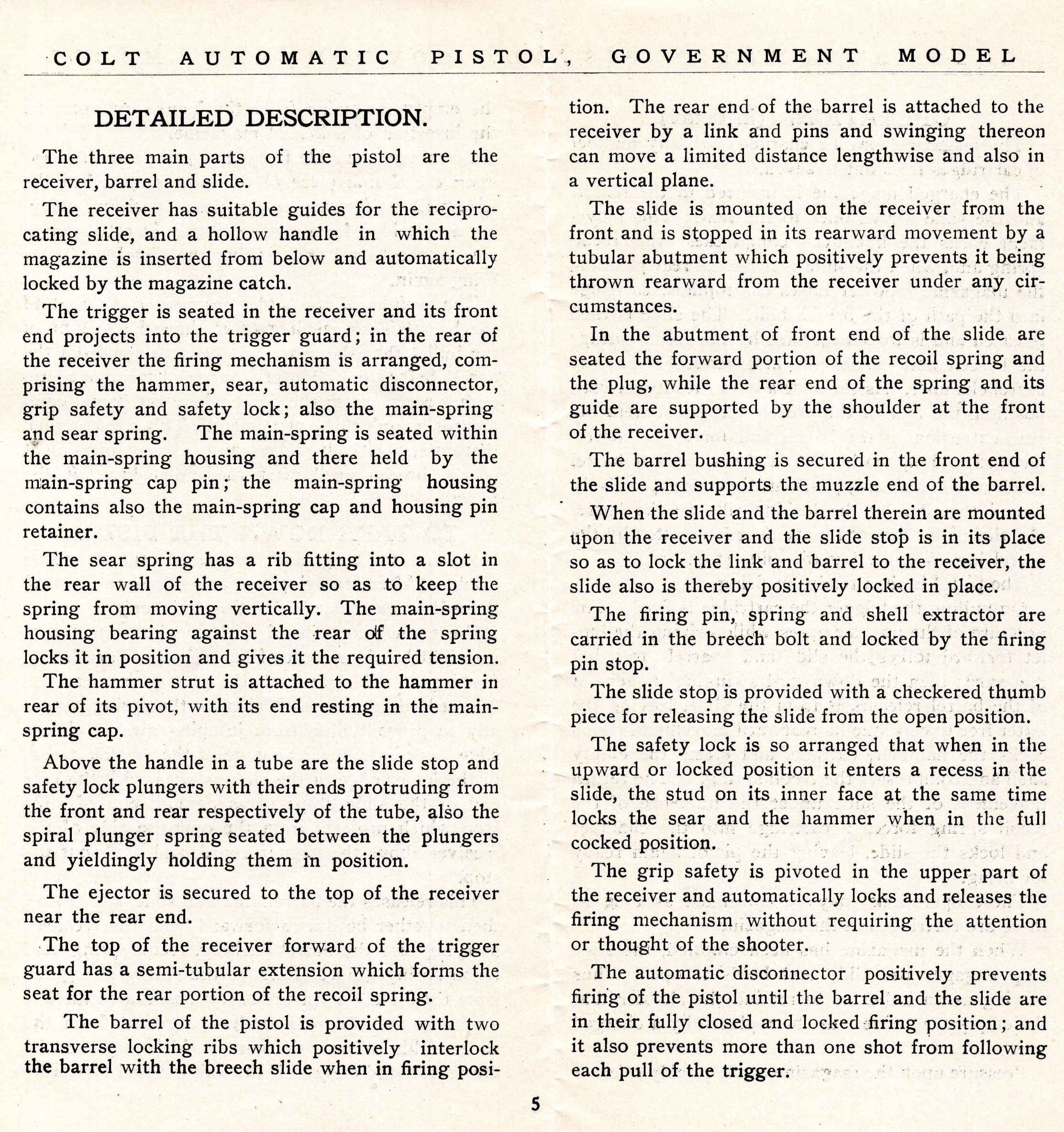

Colt .45 Automatic Pistol instructions page 7  Colt .45 Automatic Pistol instructions page 8

Colt .45 Automatic Pistol instructions page 9
