1998 Colt 4 x 21 RFI Reticle Scope  (RARE)



Colt Optics (C-More) 4x21 RFI scope

2000 Colt 4 x 21D / 4 x 21 RFI  (RARE)

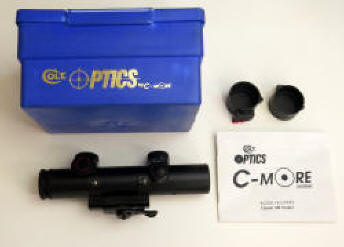

2000 Colt 4 x 21 Model D RFI scope, paperwork, lense covers, and Colt Optics box

Colt 4 x 21 Range Finding Illuminated Reticle Scope

The Colt 4x21 Illuminated Reticle scope was called the "Night Stalker". The illuminated reticle has 11 illumination settings and runs on a single 2032 button battery.  Battery life is 720 hours on the lowest illumination level and 120 hours at the brightest level.

The illuminated reticle is incredibly sharp and crisp. It can also be used without the illumination like a normal rifle scope. This scope was designed to be used with the NATO 5.56 round and has a built in Bullet Drop Compensator.  Zero the scope at 100m and the B.D.C. can be set for ranges from 100m - 500m with no hold over.

The reticle also has built in ranging from 200m to 1000m.

Specs for the Colt 4x21 RFI Scope; Magnification: 4x

  • Objective: 21mm

  • FOV @100yrds: 29'

  • Eye Relief: 3"

  • Length: 7 3/4"

  • Weight: 15.2oz

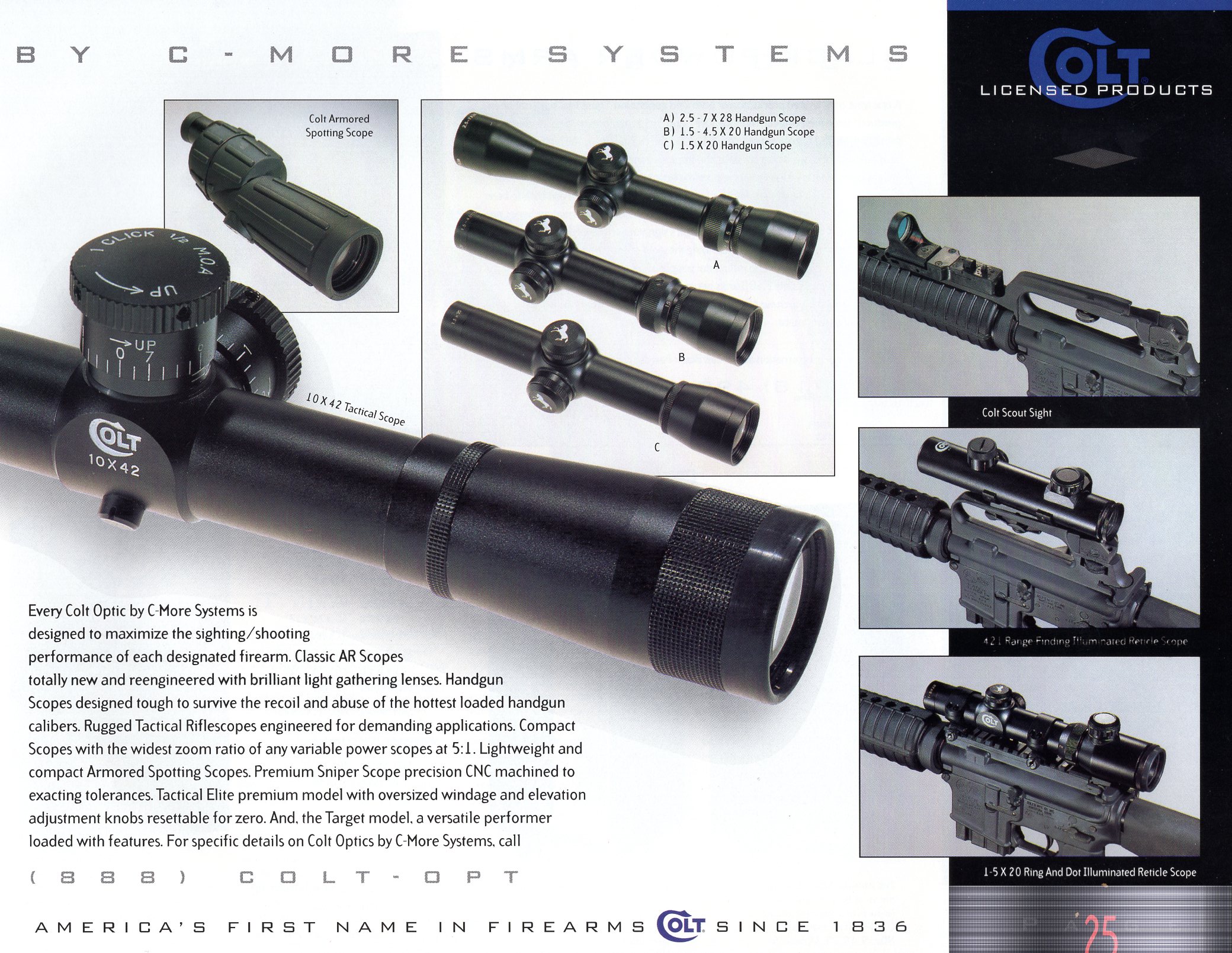

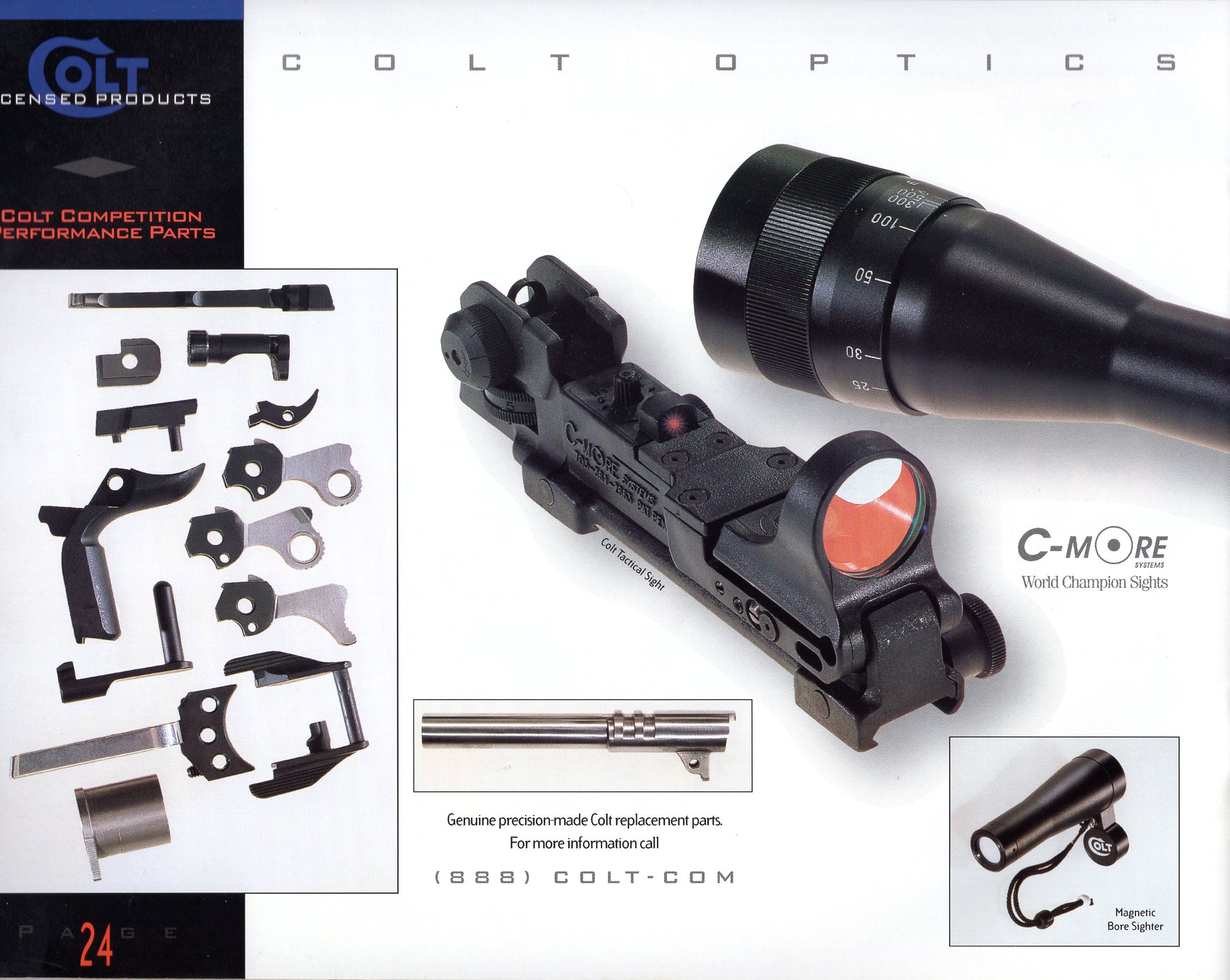

Colt 1998 catalog showing scopes=3
1998 Colt Catalog Cover

Colt 1998 catalog showing scopes-2Colt 1998 catalog showing scopes-1

The Colt Optics (C-More) 4 x 21 RFI was first shown in the1998 Colt Catalog.
Optic is shown in the middle of the right side panel mounted on AR-15 handle

Colt 4 x 21 Range Finding Illuminated Reticle Scope  Colt Optics (C-More) 4x21 RFI scope

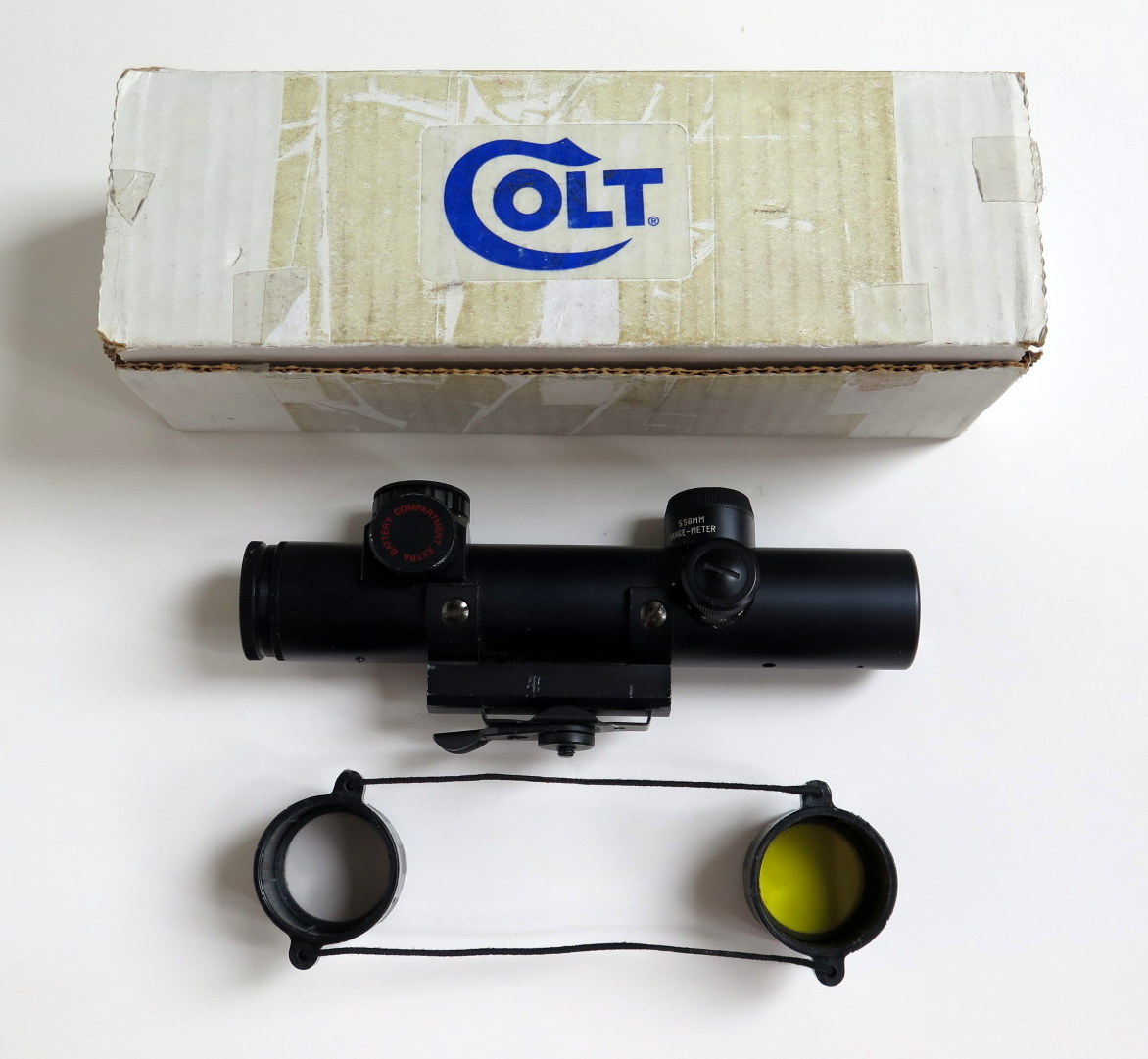

1998 Colt marked 4 x 21 RFI scope and original box

Colt logo

Colt 421RFI label
421RFI label on box end

Colt 4 x 21 RFI Reticle Scope showing forward and rear turrets

spare battery storage space  side view of scope

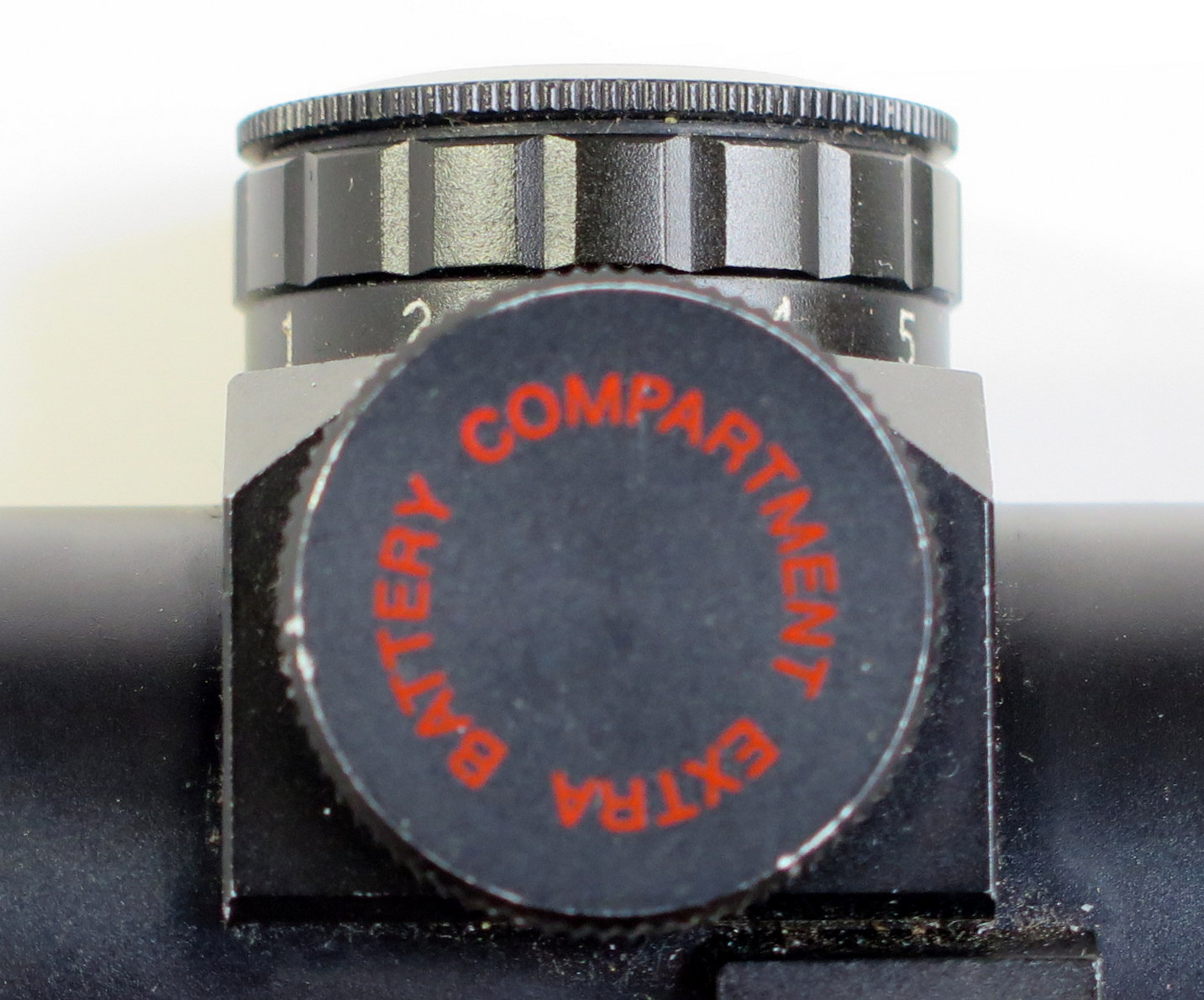

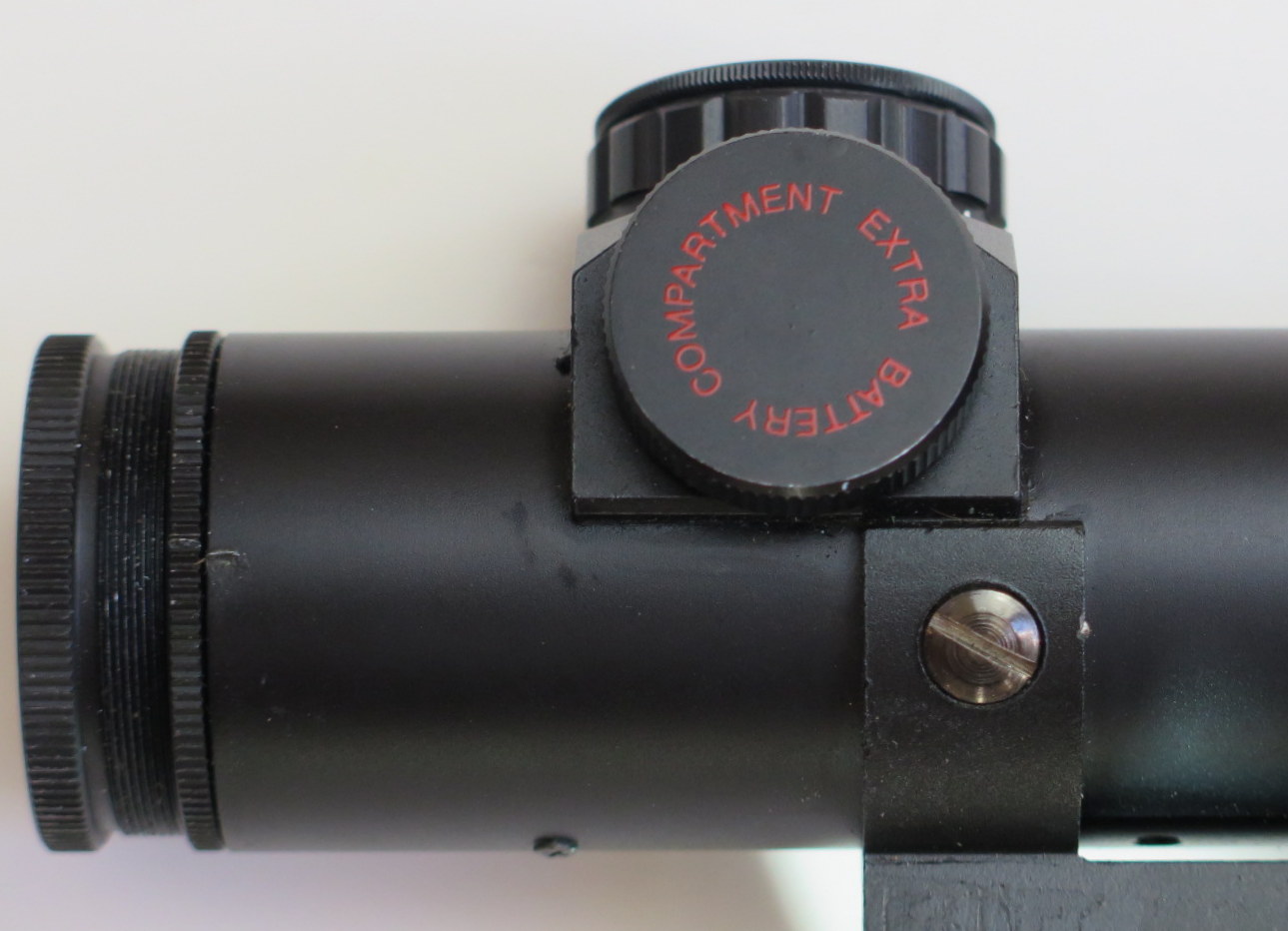

Spare battery storage on left

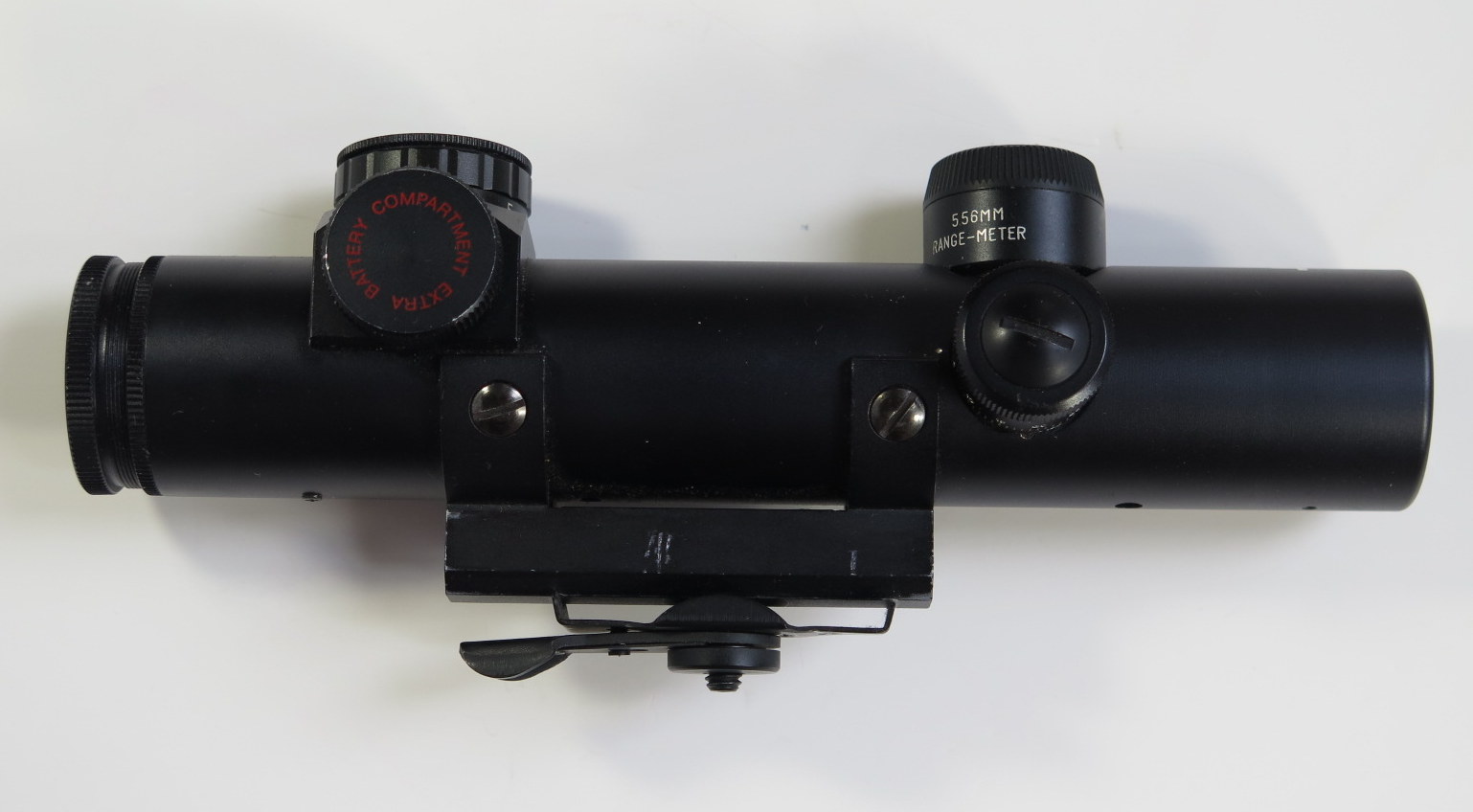

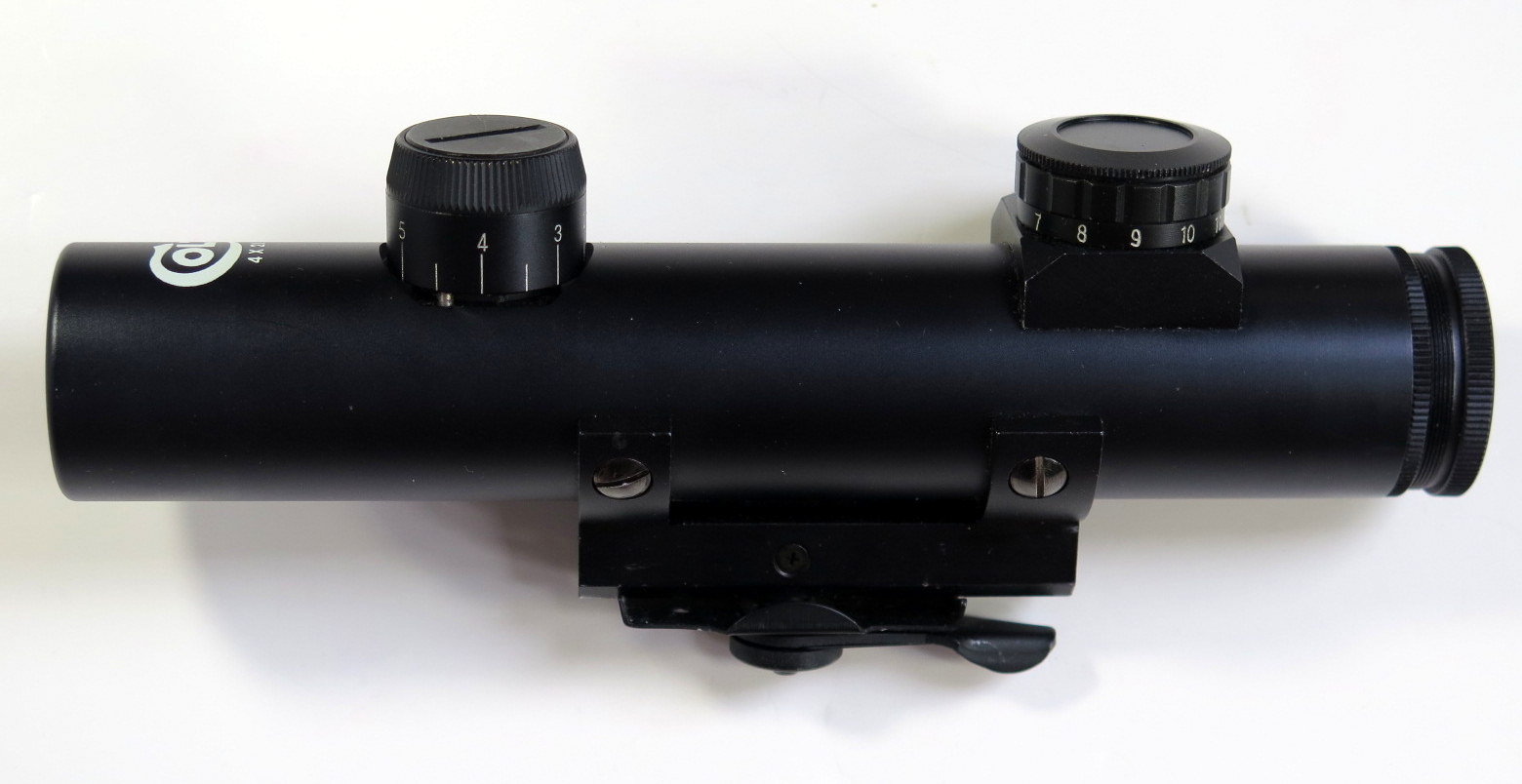

Colt 4x21 side view

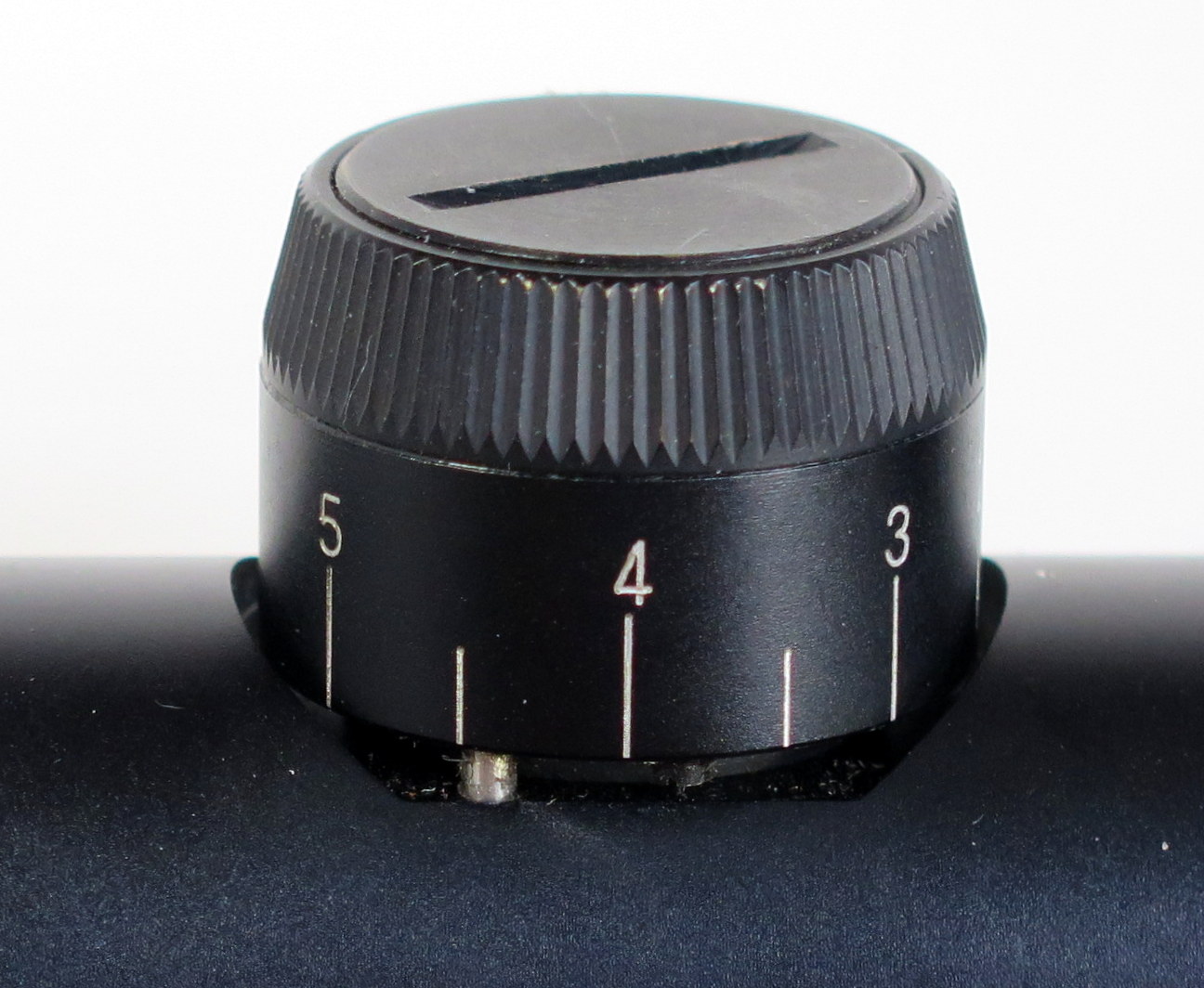

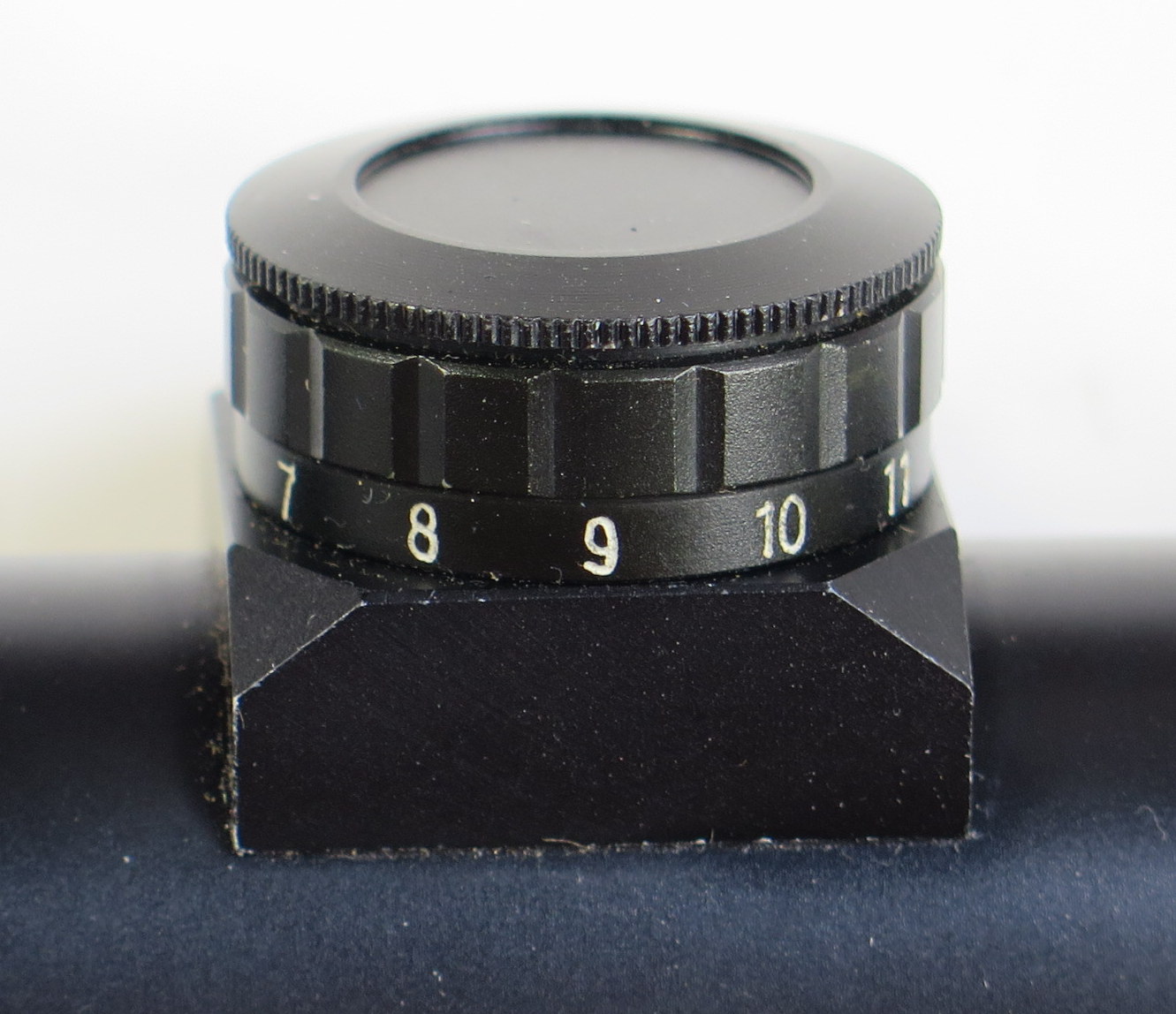

Colt Optics (C-More) 4x21 RFI scope turret  Colt Optics (C-More) 4x21 RFI scope turret -2

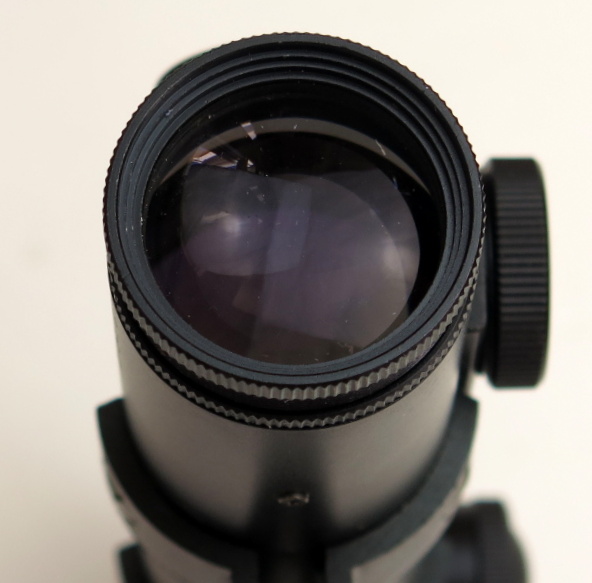

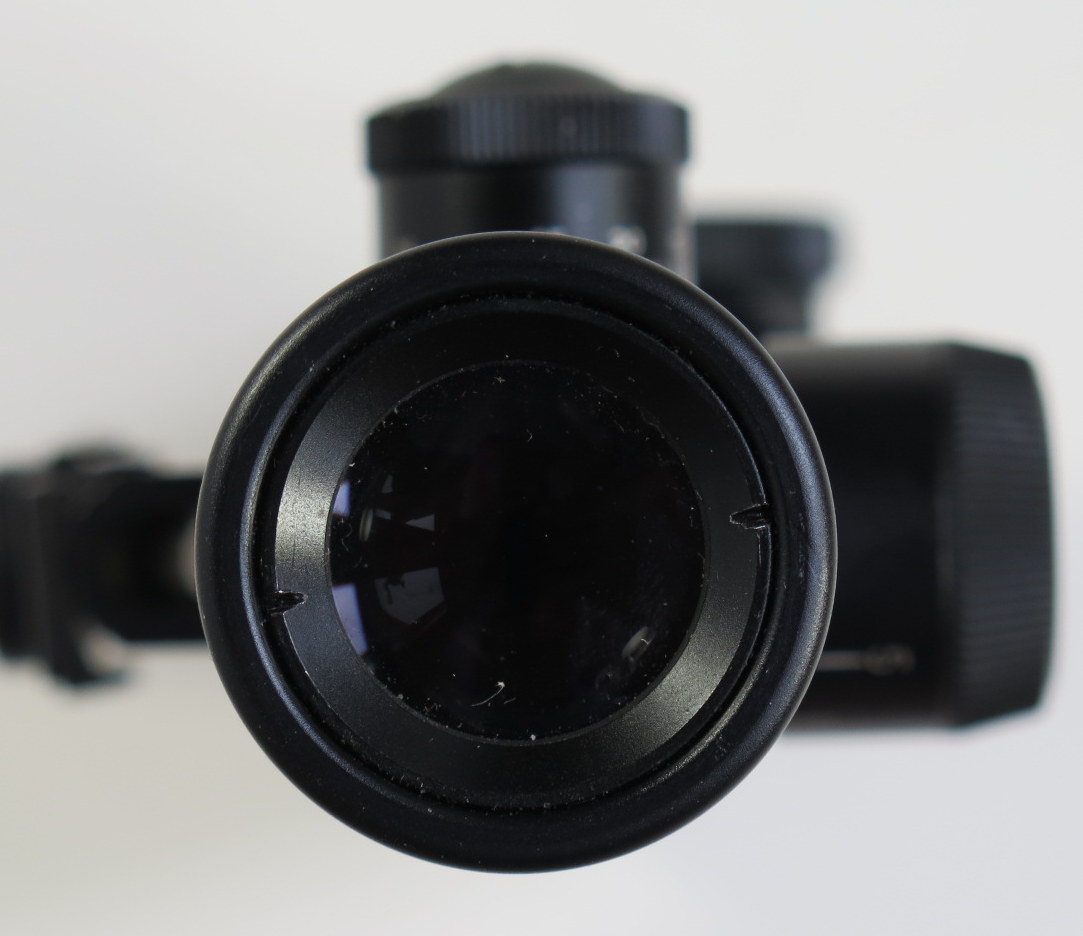

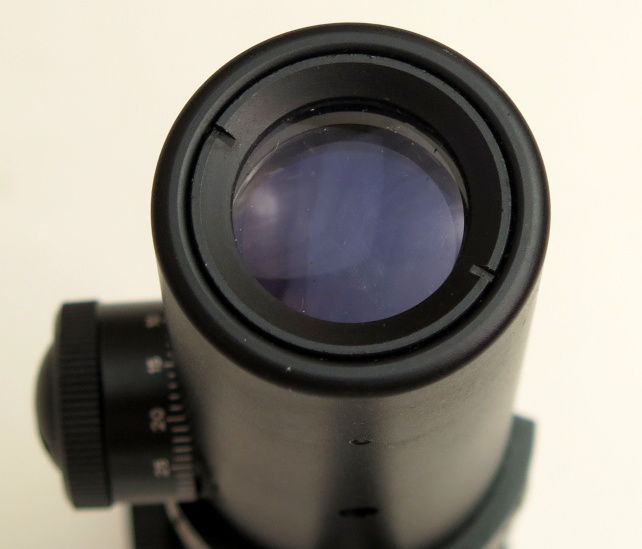

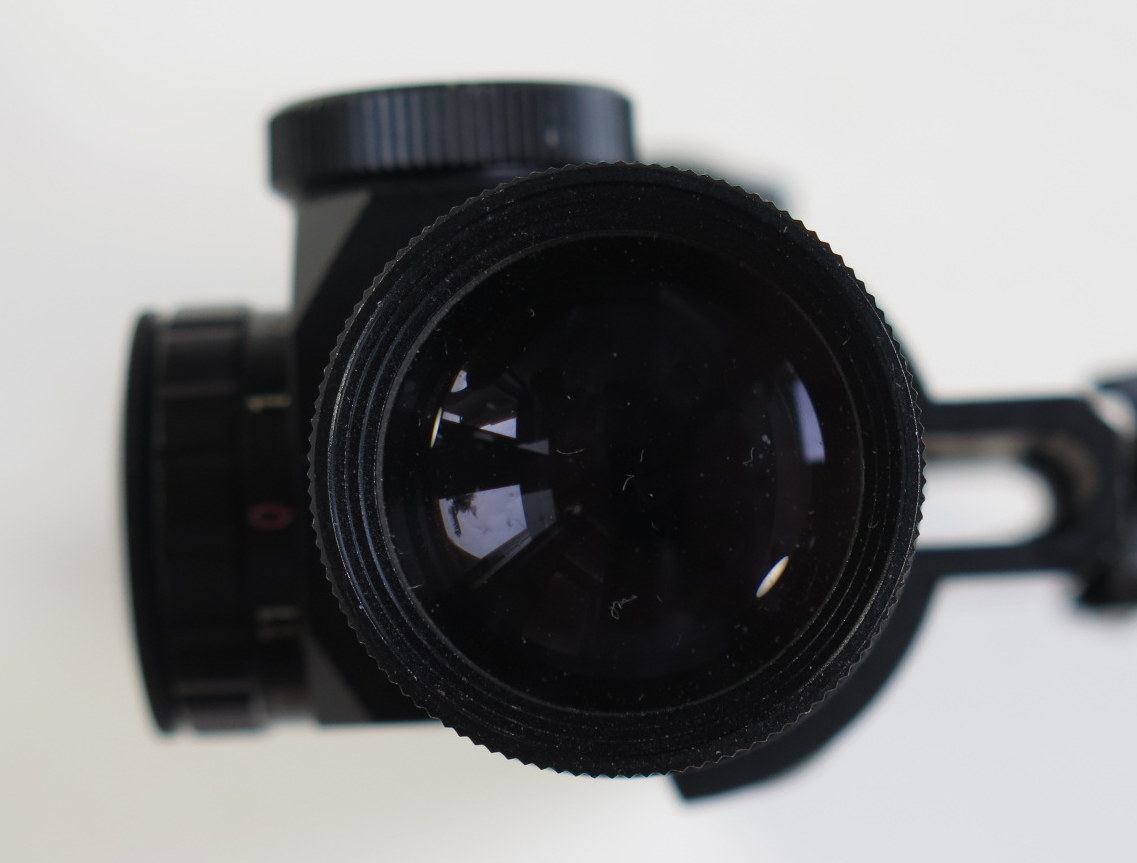

Colt Optics (C-More) 4x21 RFI scope optic end  Colt Optics (C-More) 4x21 RFI scope eye piece end

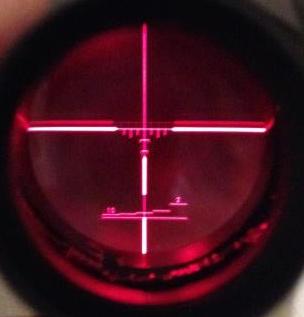

interior red illuminated cross-hairs

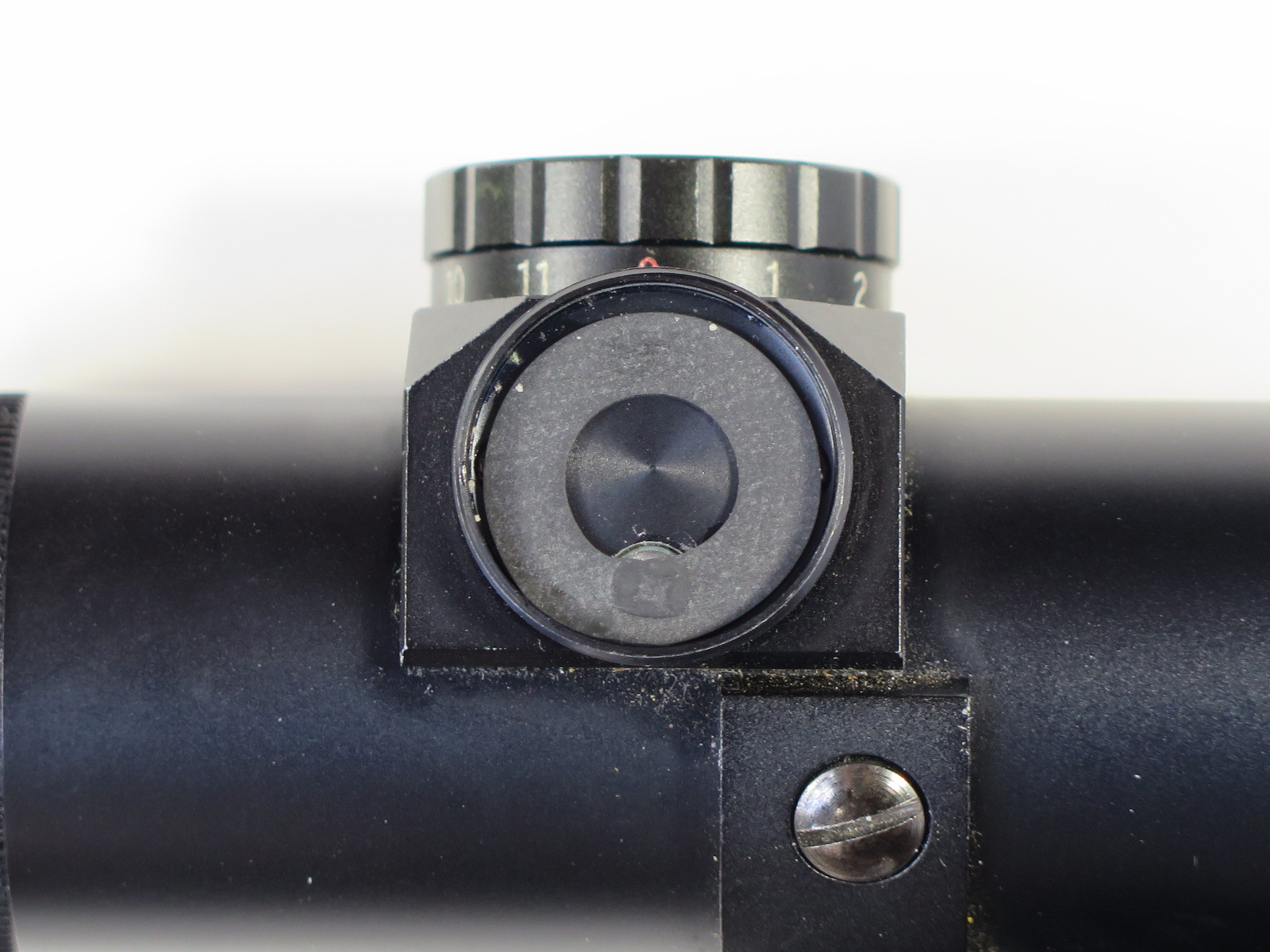

battery seated in scope

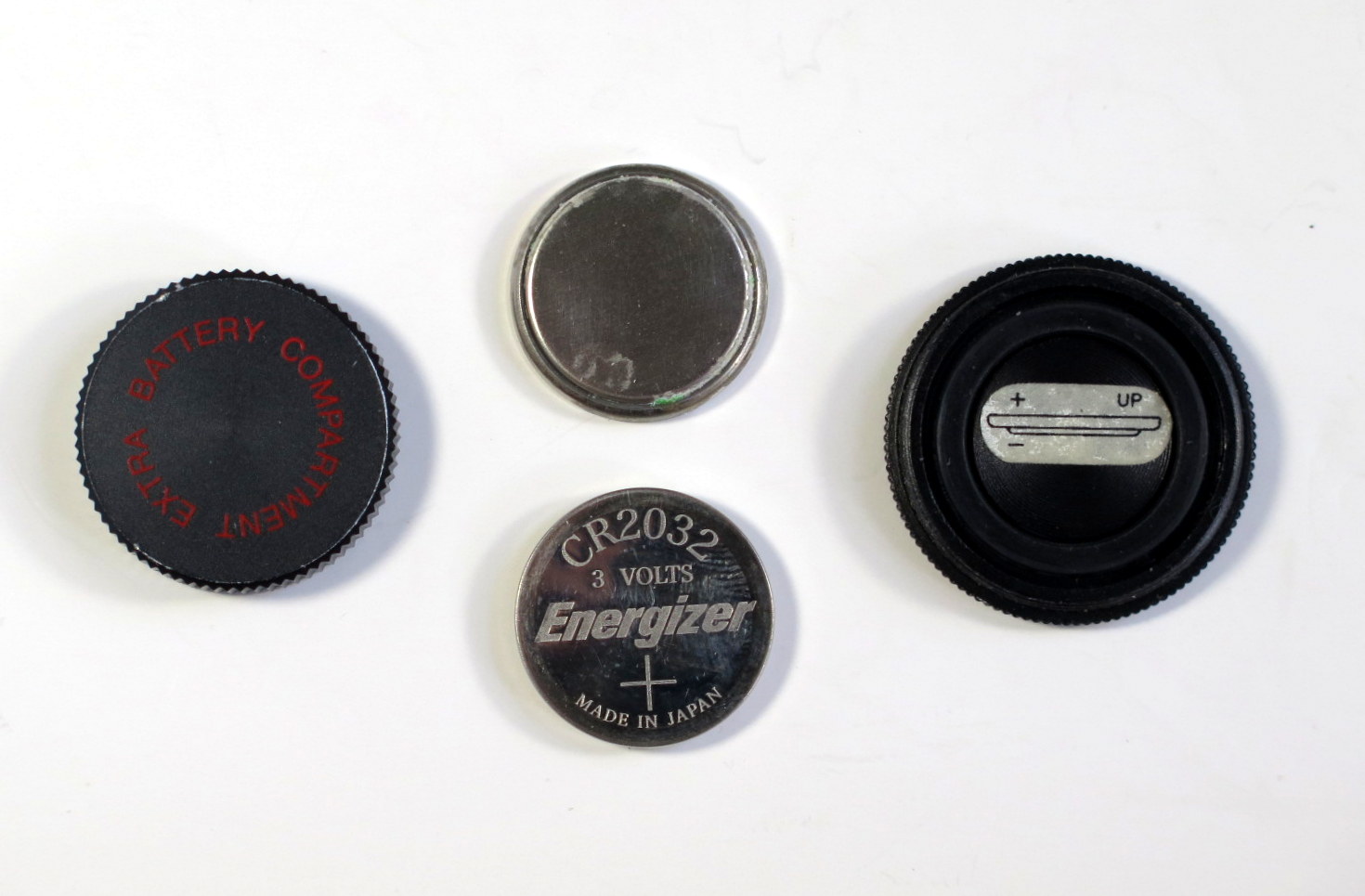

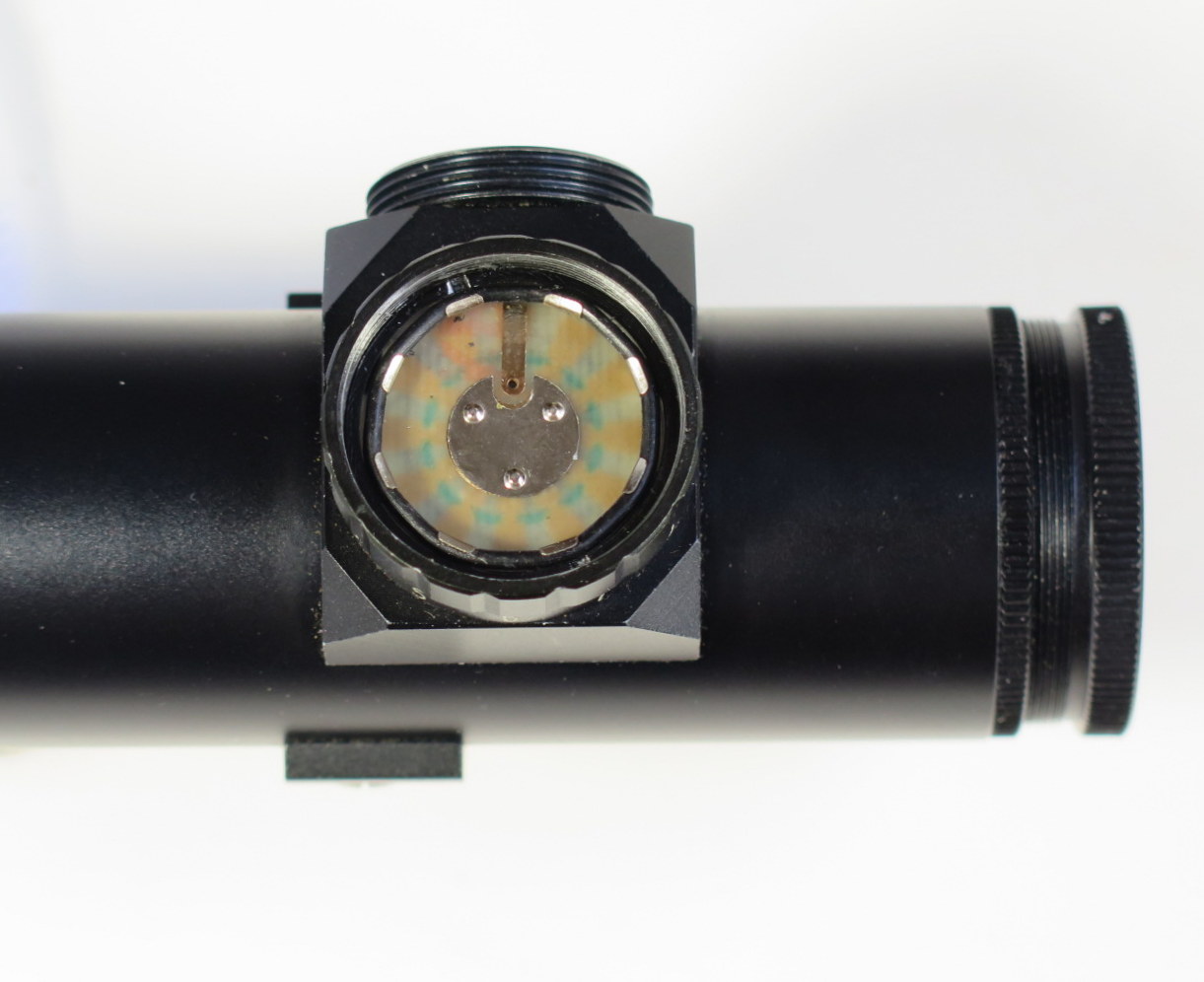

battery removed from scope with caps

3 volt button batteries, one active, one spare



Cap removed from battery storage

Cap removed from battery storage





Colt Optics logo



The later 2000 Colt Optics brand by C-More is the model 'D' 4 x 21 Classic AR scope,

and appears to be identical to the earlier model

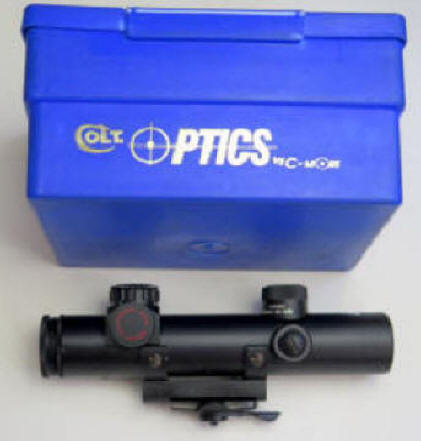

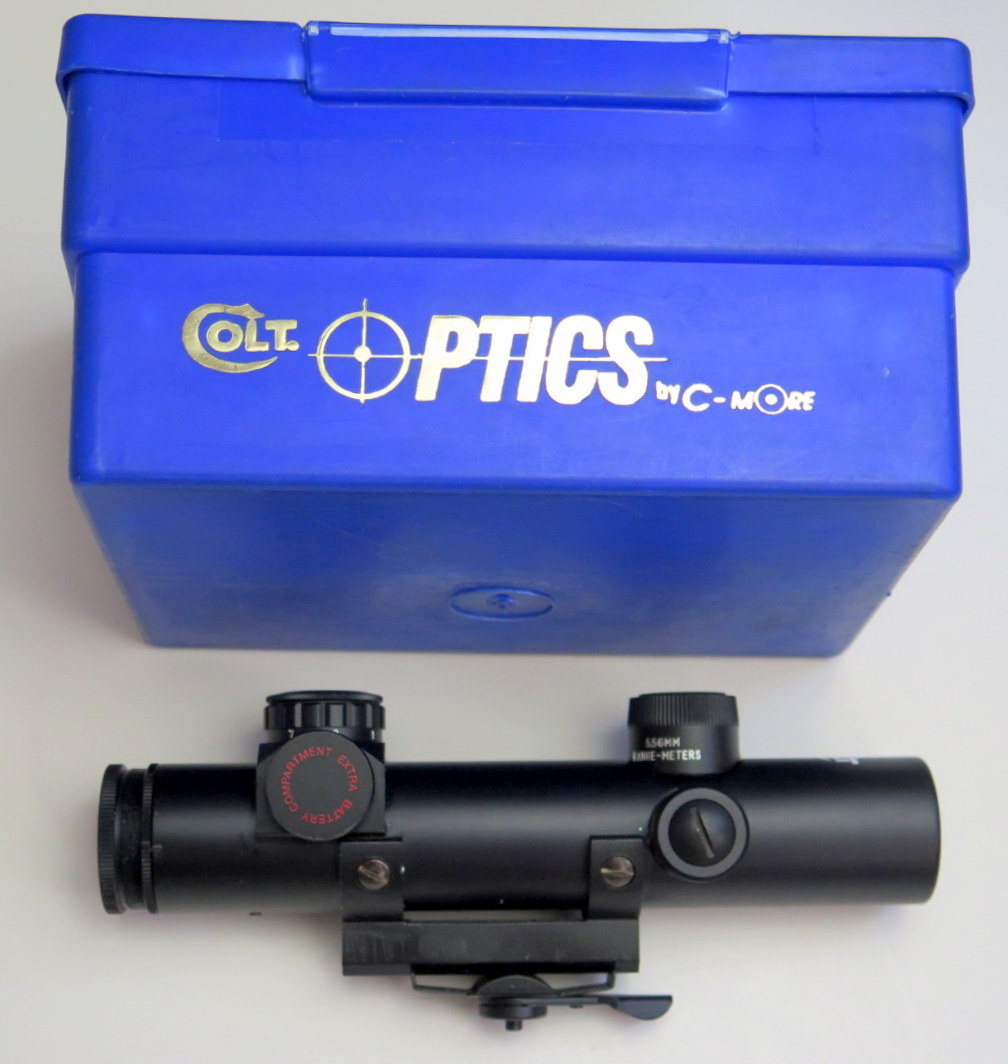

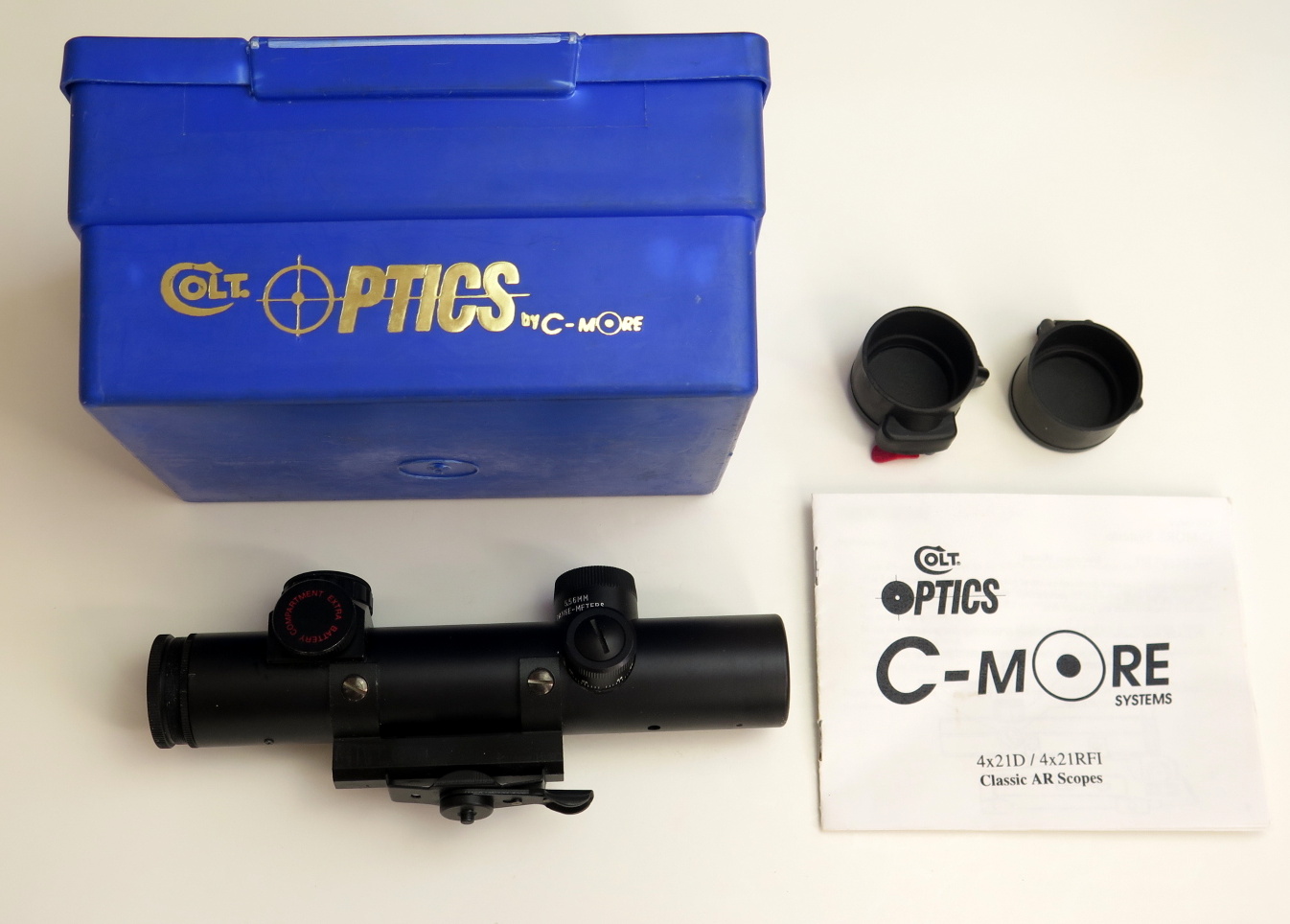

2000 Colt 4 x 21 Model D RFI scope and Colt Optics blue box

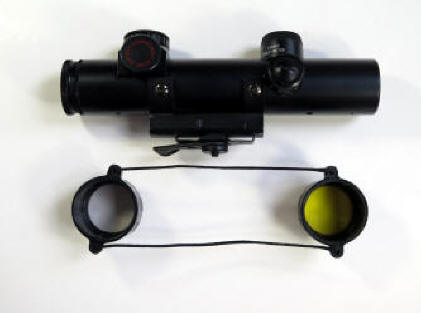

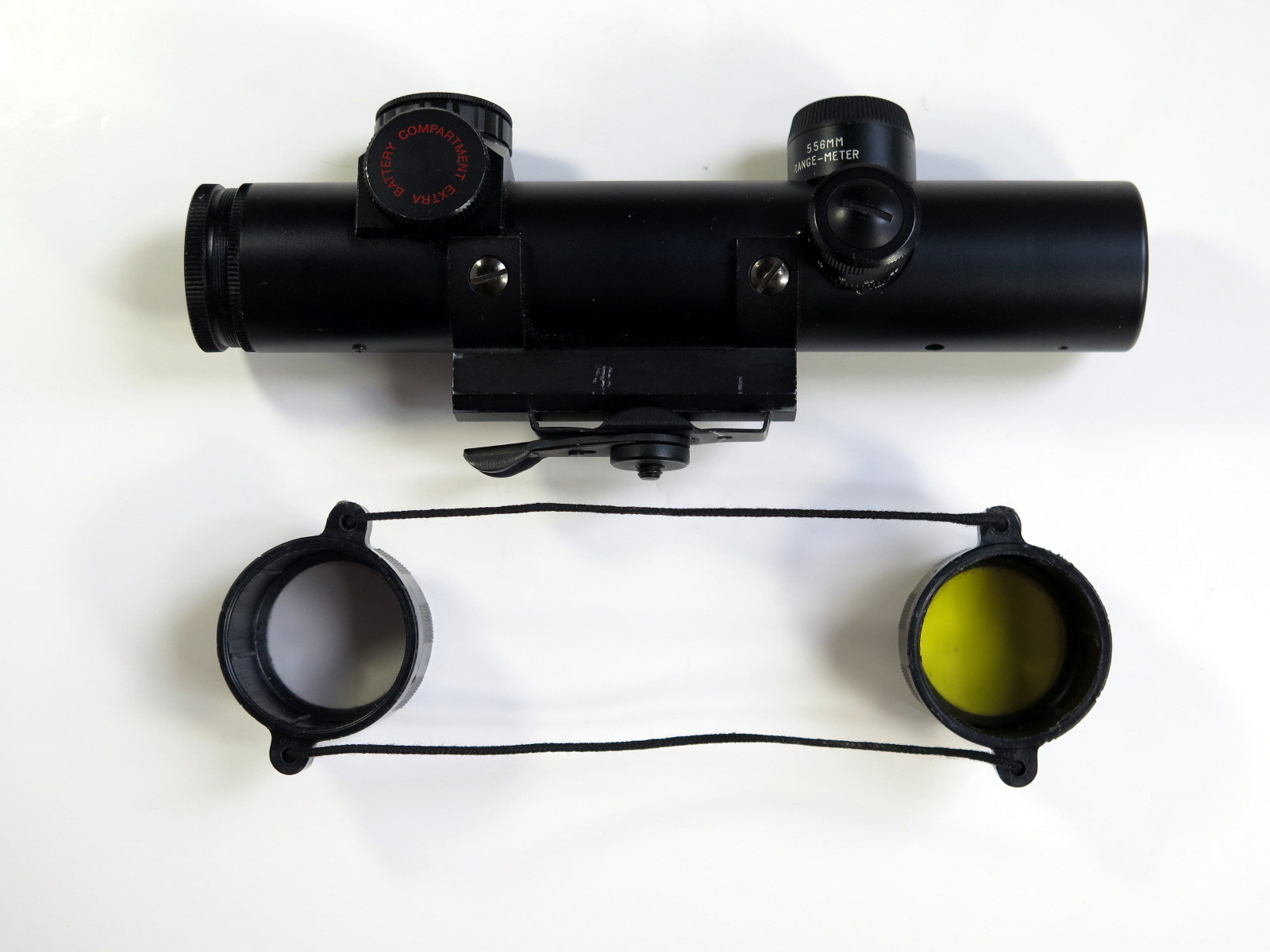

2000 Colt 4 x 21 Model D RFI scope with lense covers  2000 Colt 4 x 21 Model D RFI scope Burris lense covers up

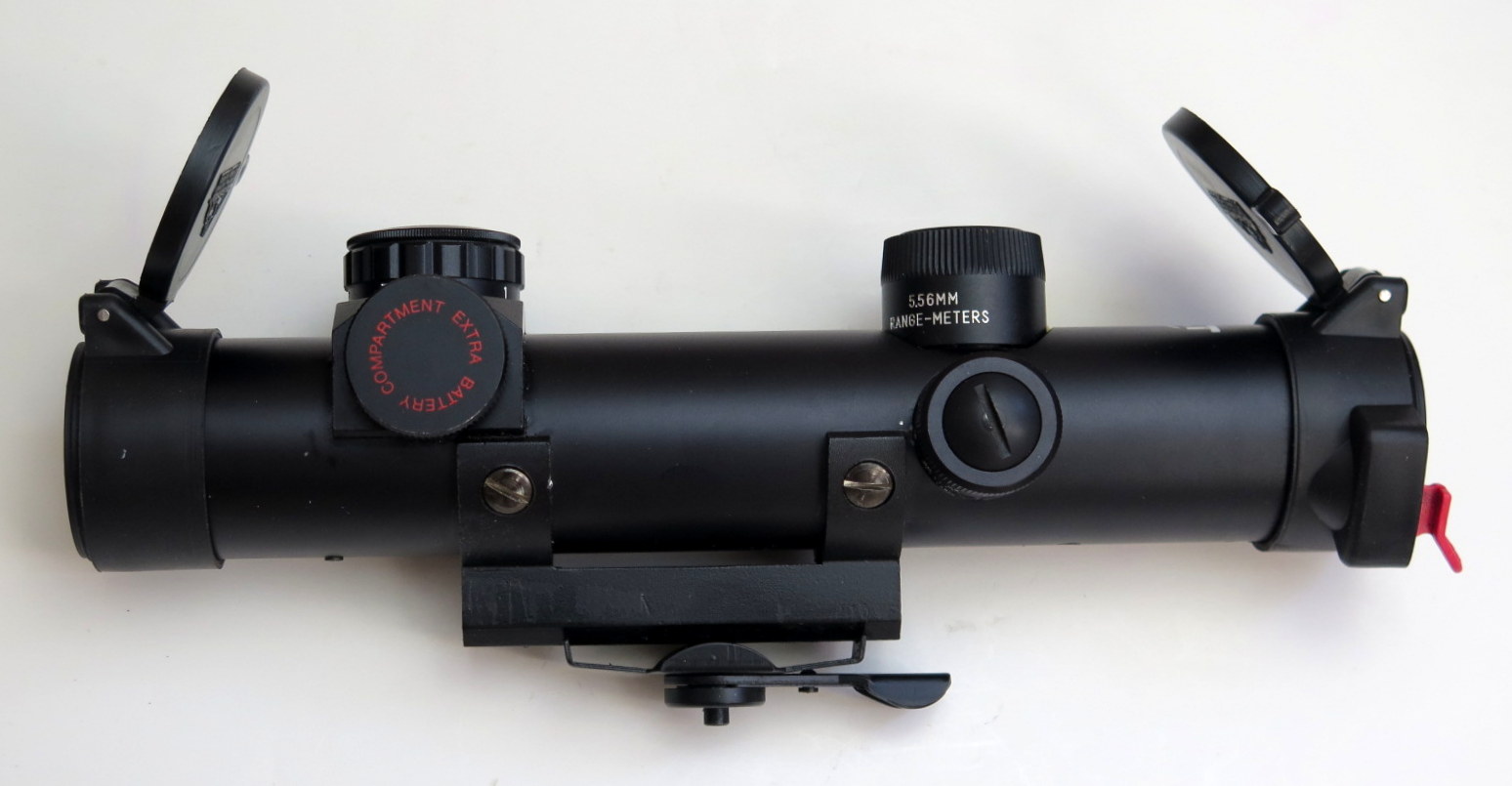

Above shown with Burris flip-up lens protectors

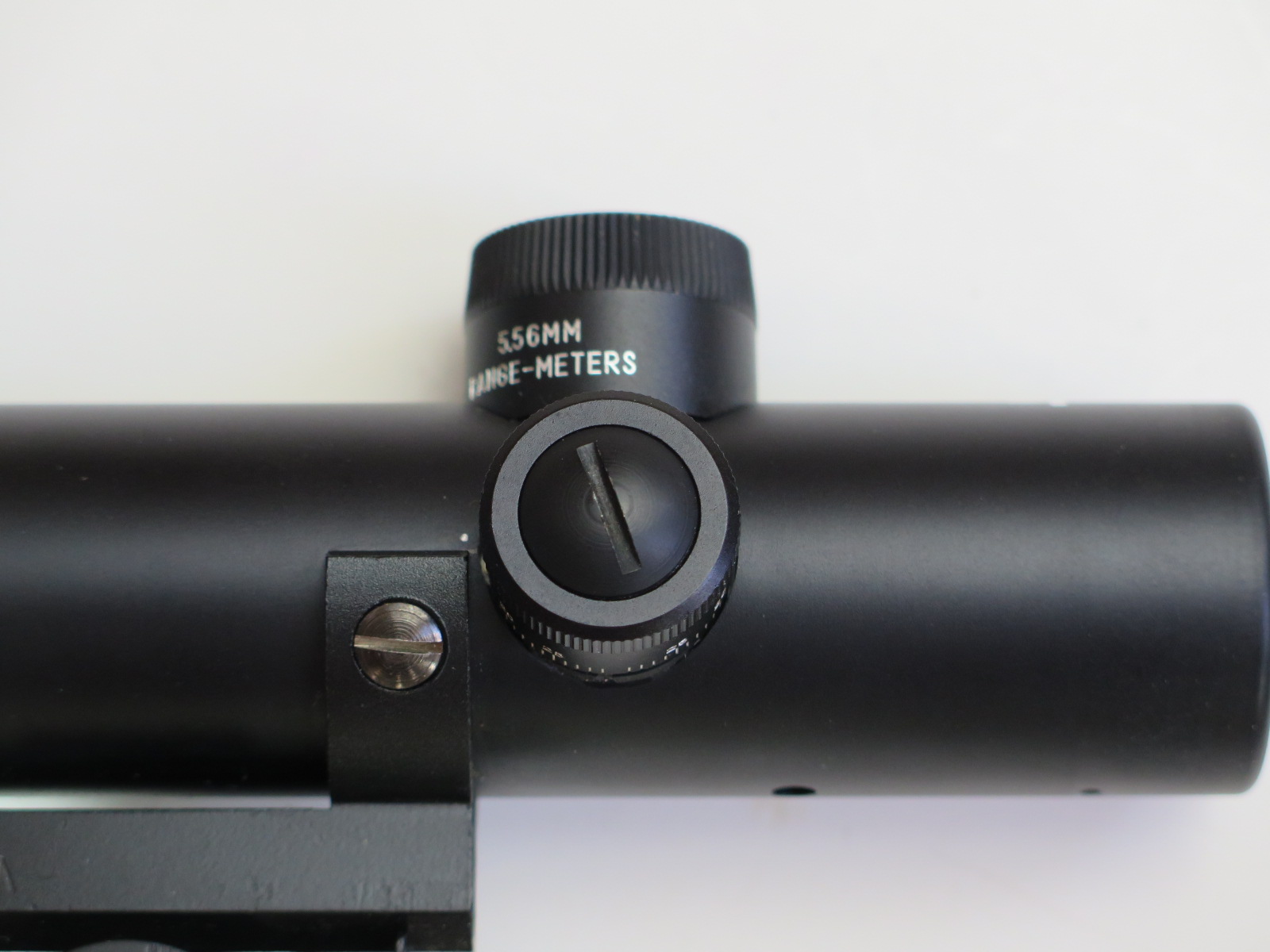

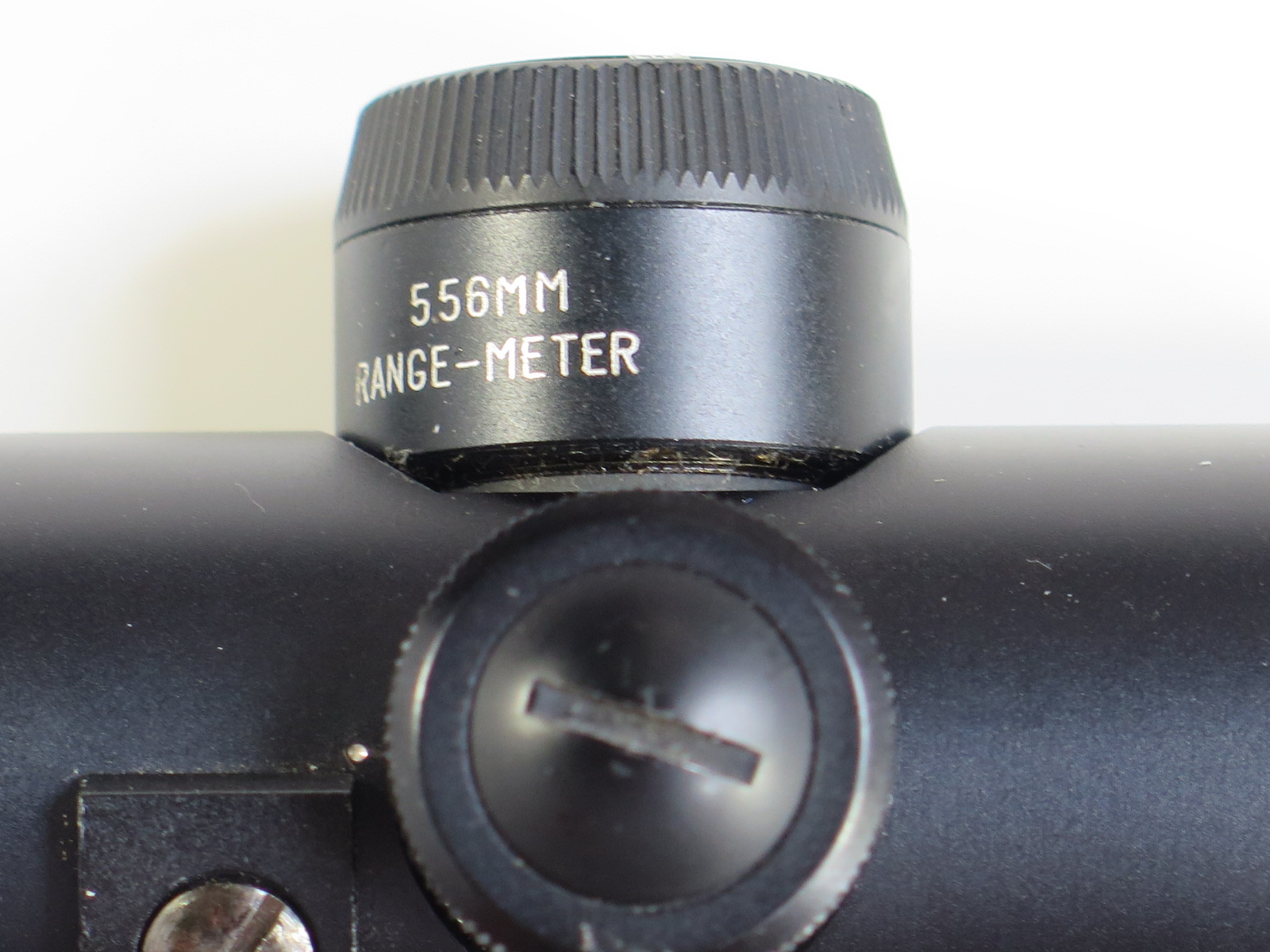

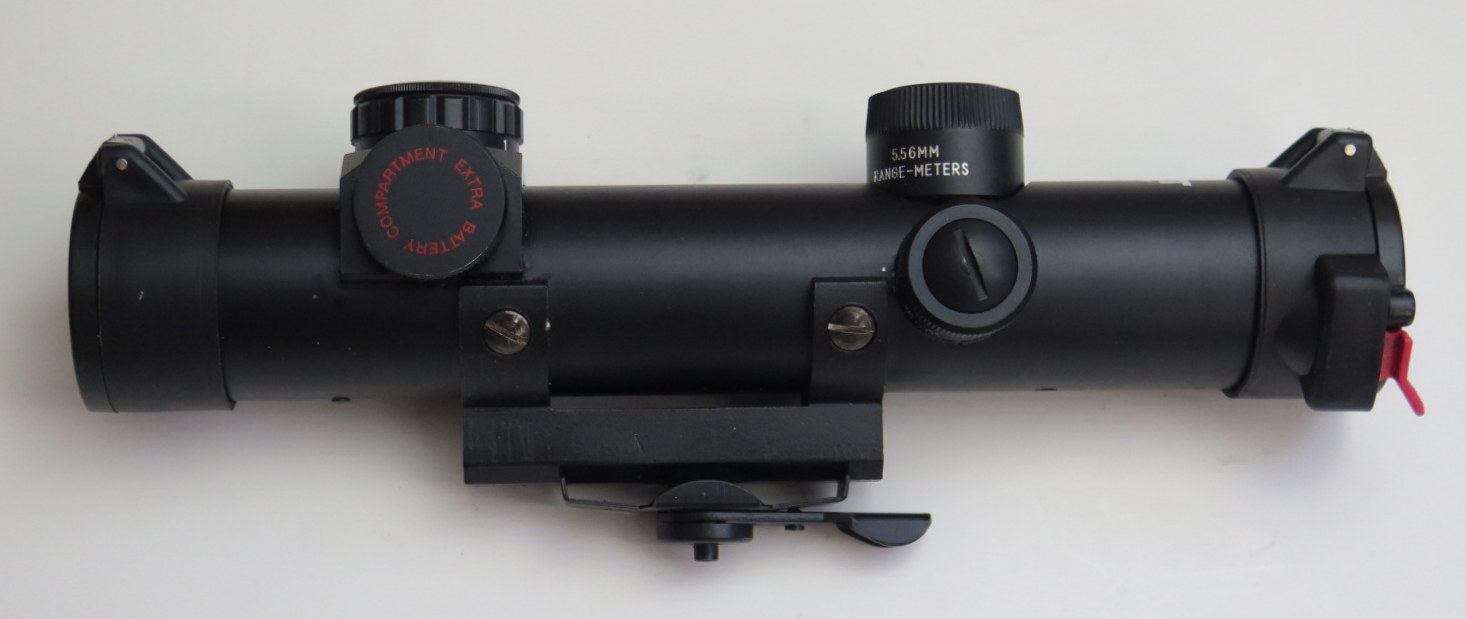

2000 Colt 4 x 21 Model D RFI scope turret marked 5.56

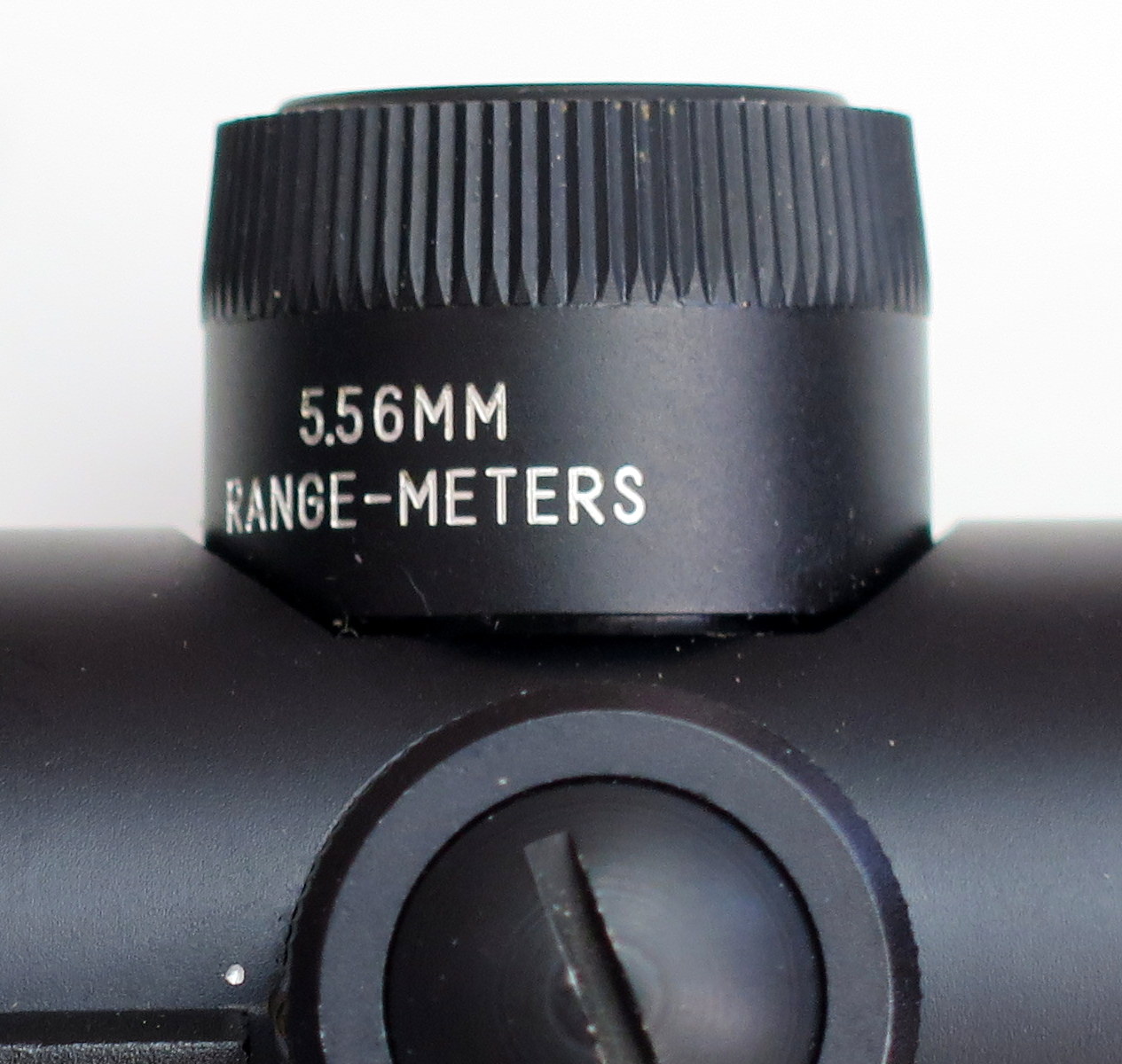

Turret marked for 5.56mm cartridge data

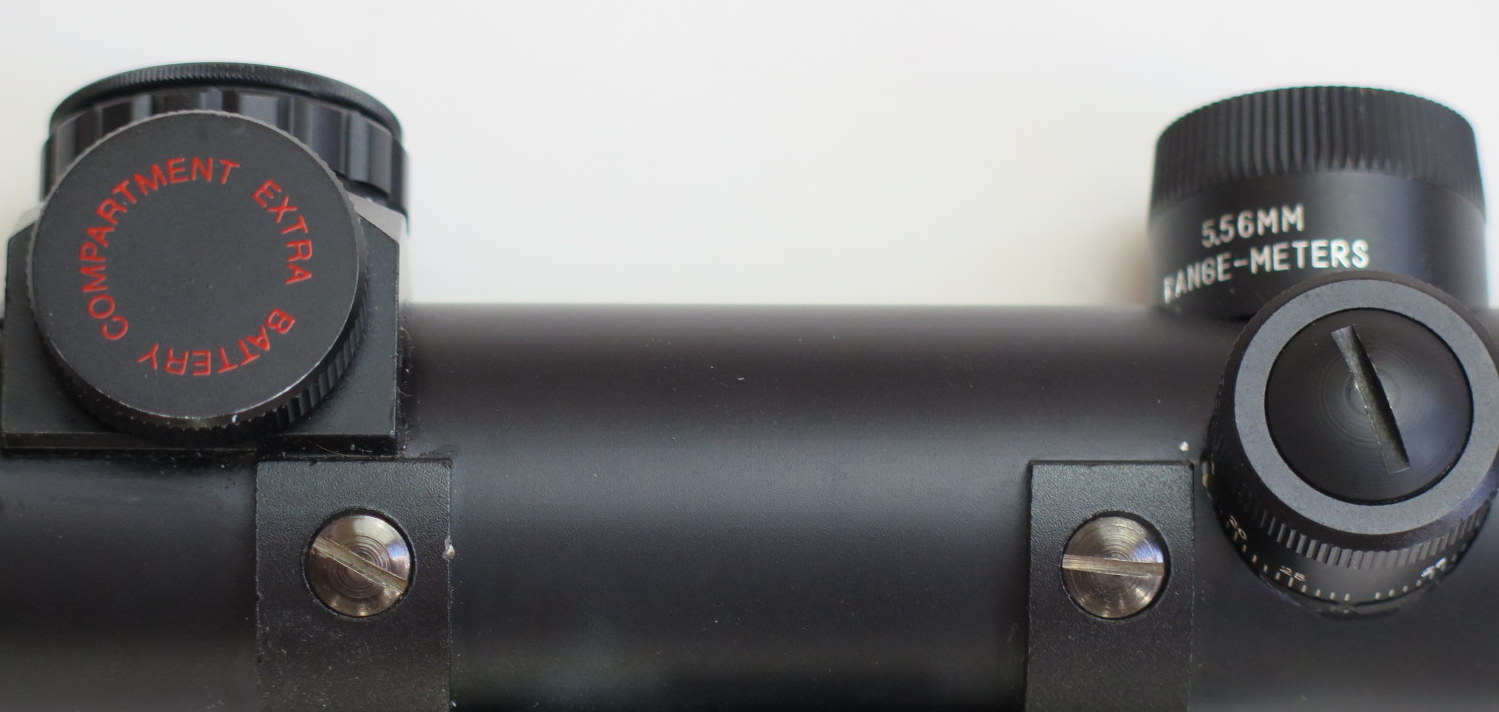

2000 Colt 4 x 21 Model D RFI scope turret and battery storage    2000 Colt 4 x 21 Model D RFI scope turret and battery storage-2    2000 Colt 4 x 21 Model D RFI scope-1 turret

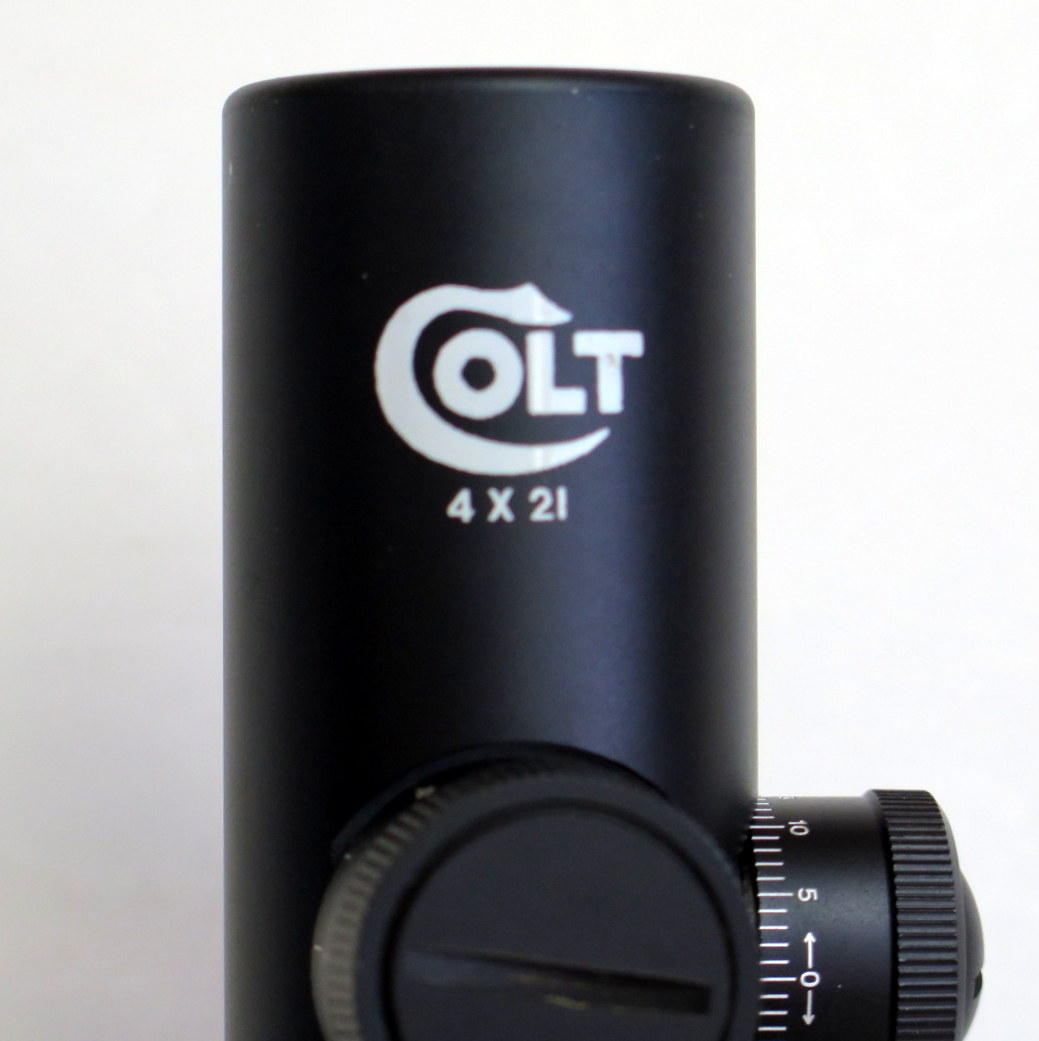

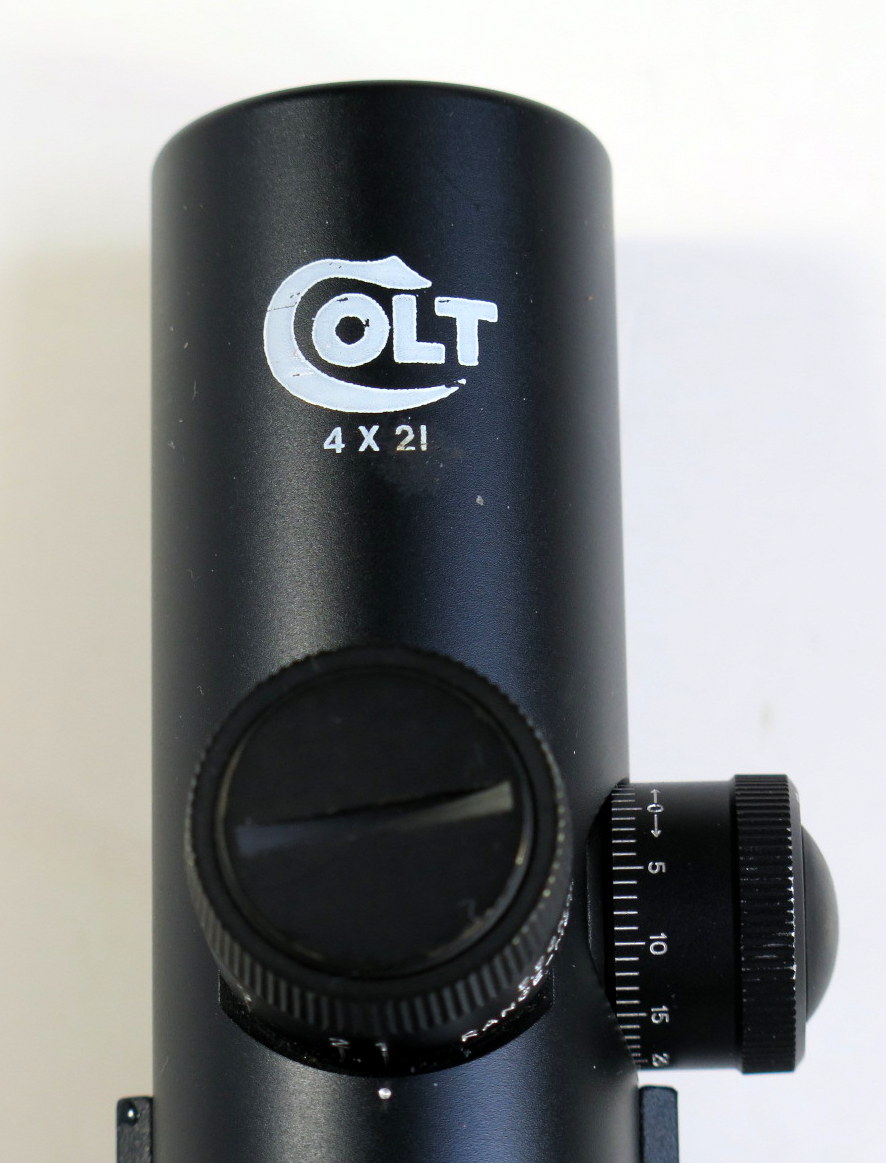

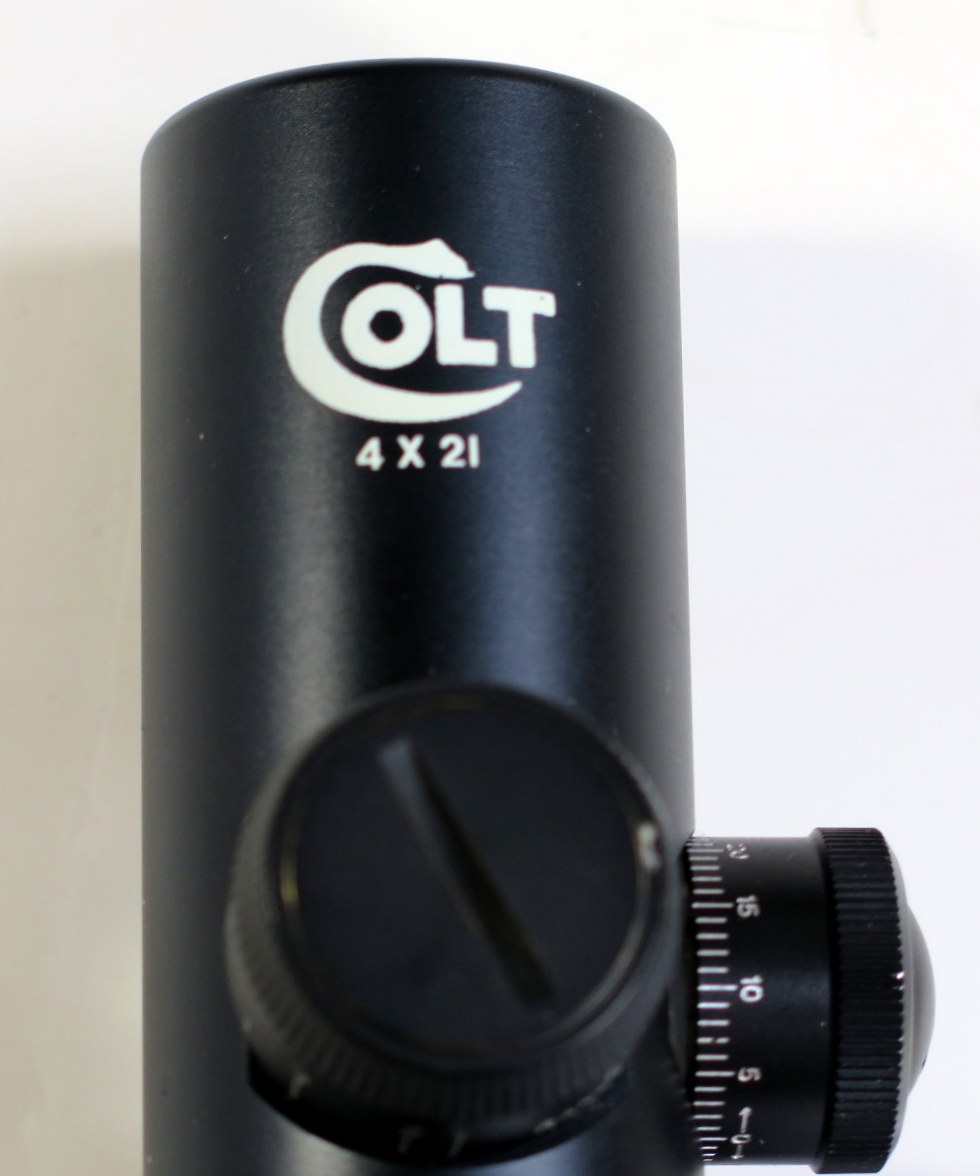

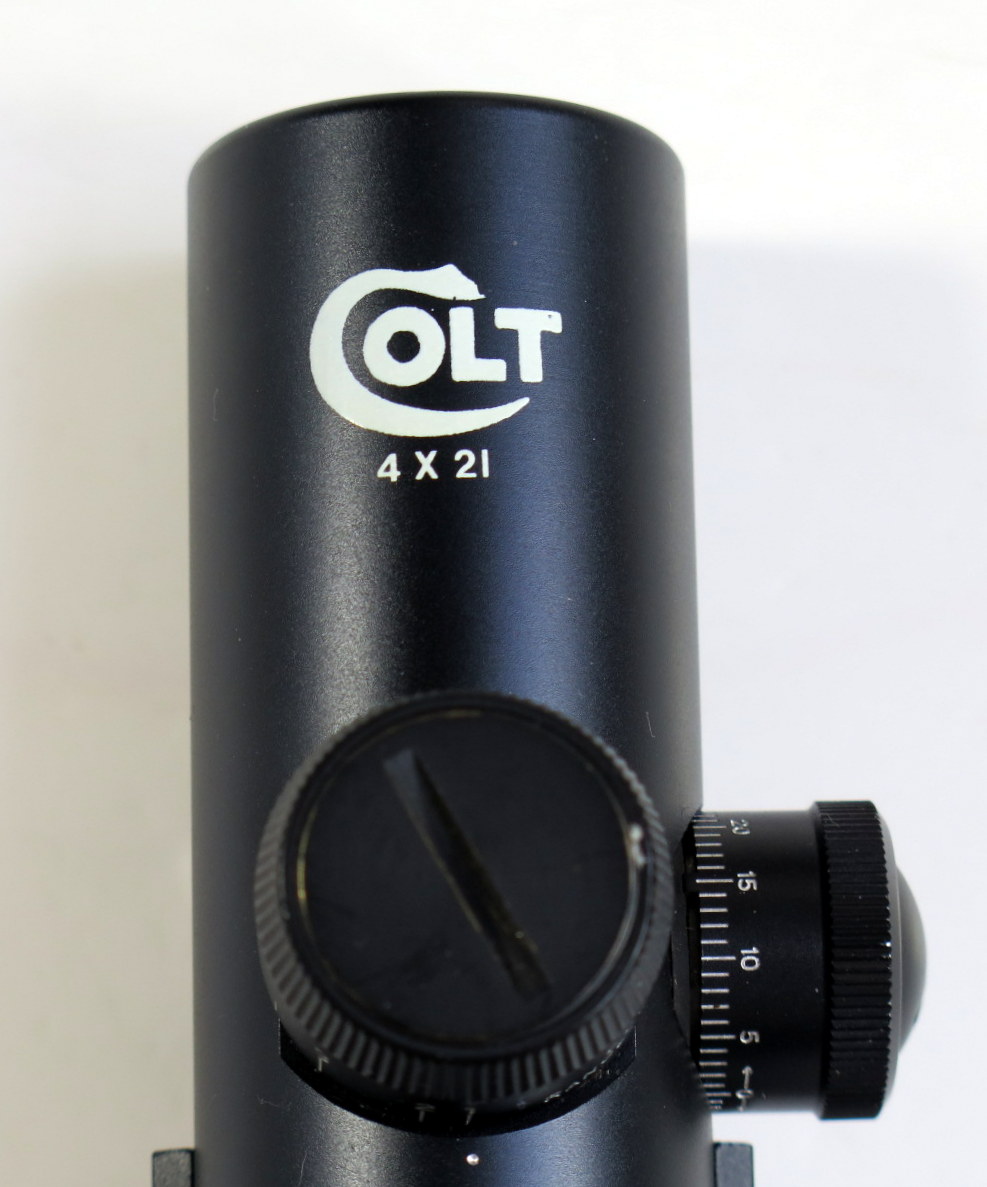

2000 Colt 4 x 21 Model D RFI scope 'Colt' label



4 x 21 Model 'D' Classic AR scope



2000 Colt 4 x 21 Model D RFI scope-1  2000 Colt 4 x 21 Model D RFI scope-2



Extensive paperwork provided with the 2000 4 x 21 RFI Model 'D'

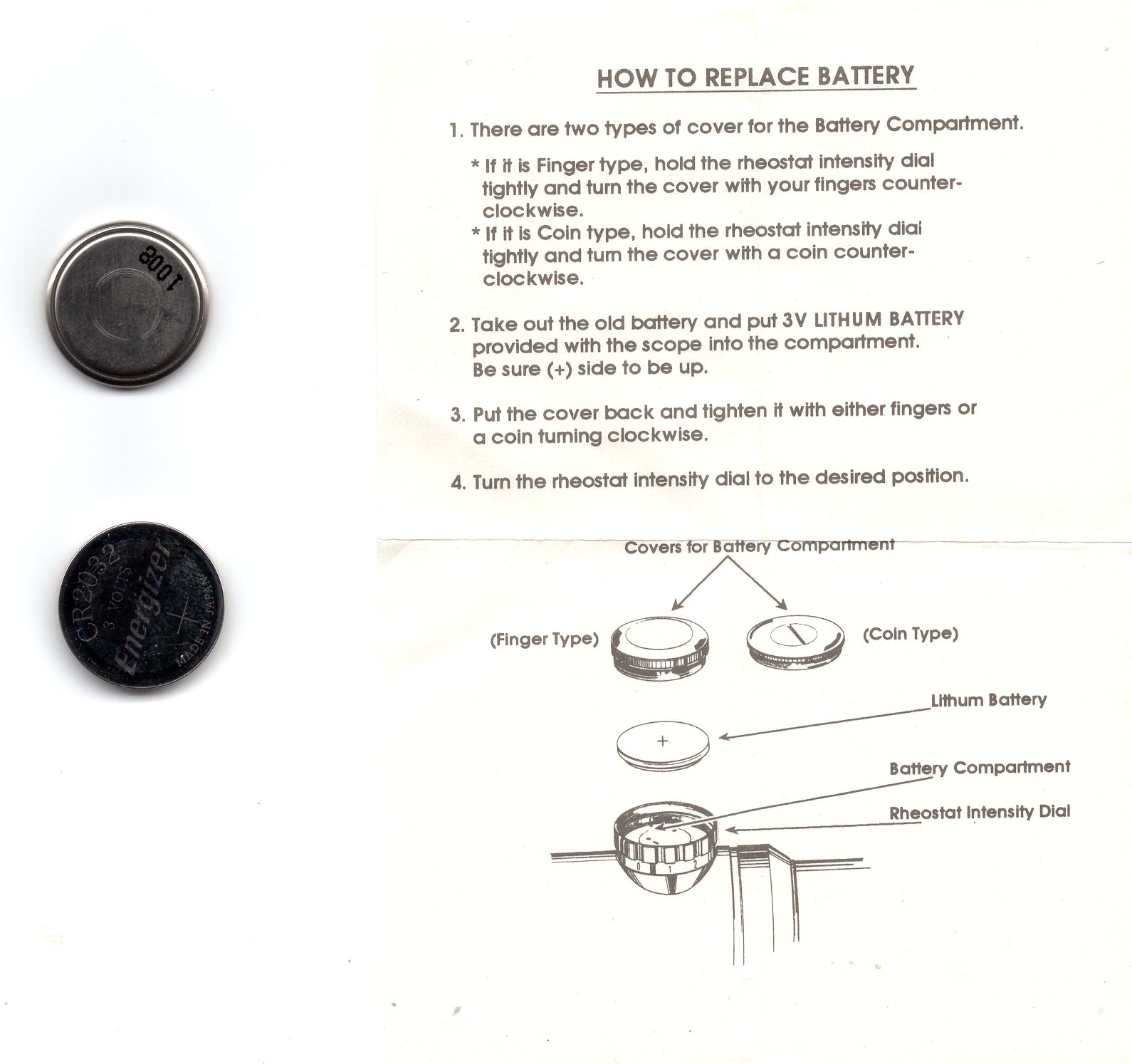

Colt 4 x 21 RFI battery instructions

Battery examples and notes

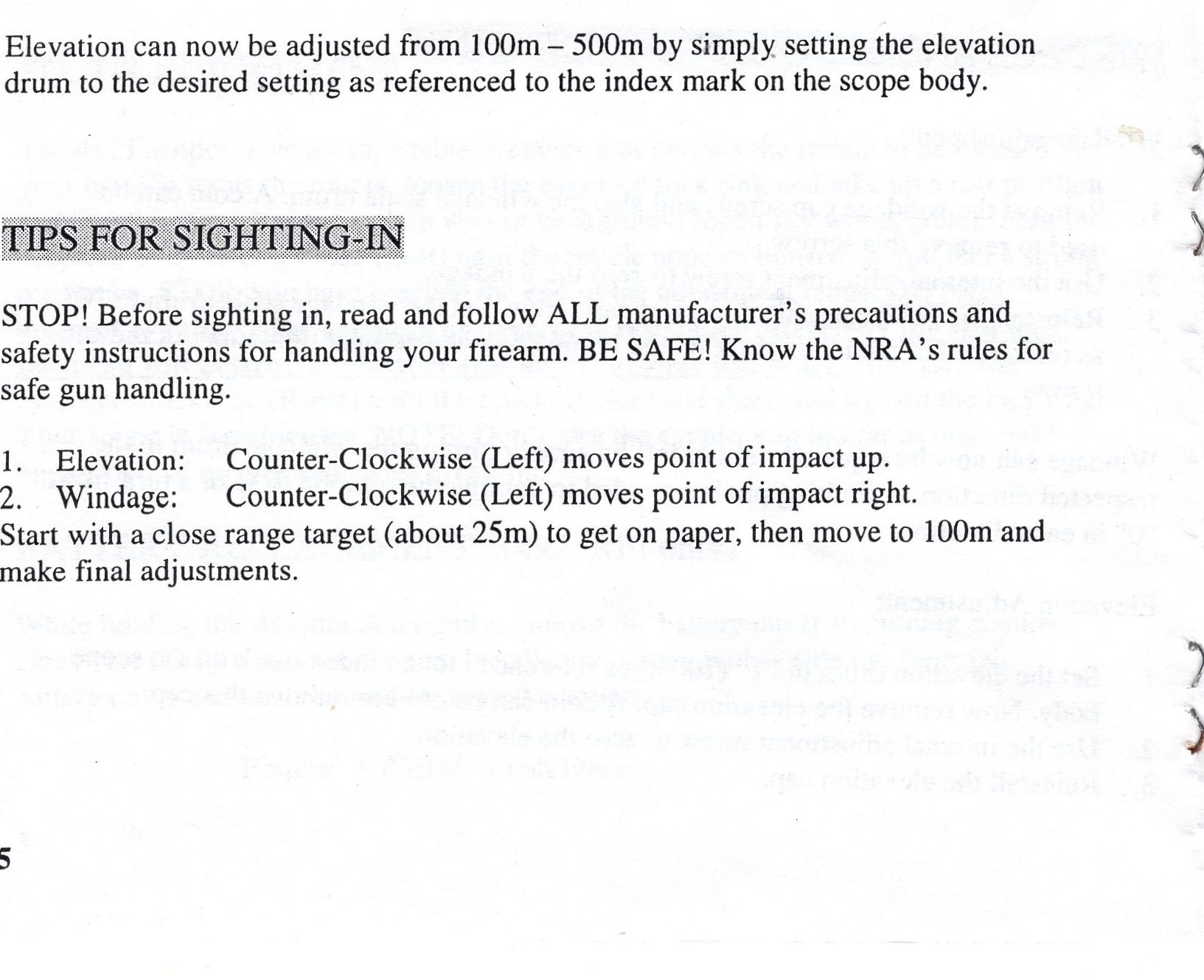

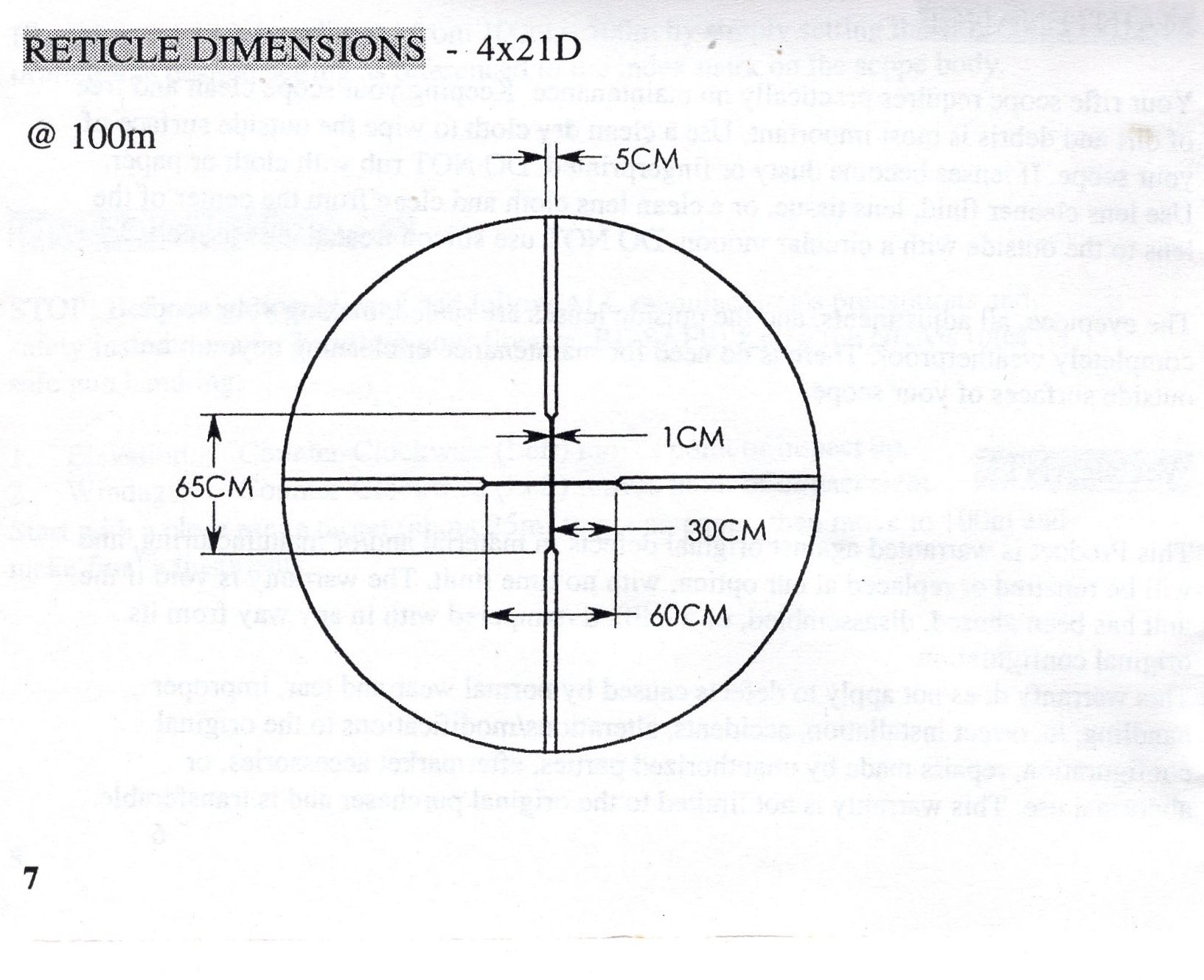

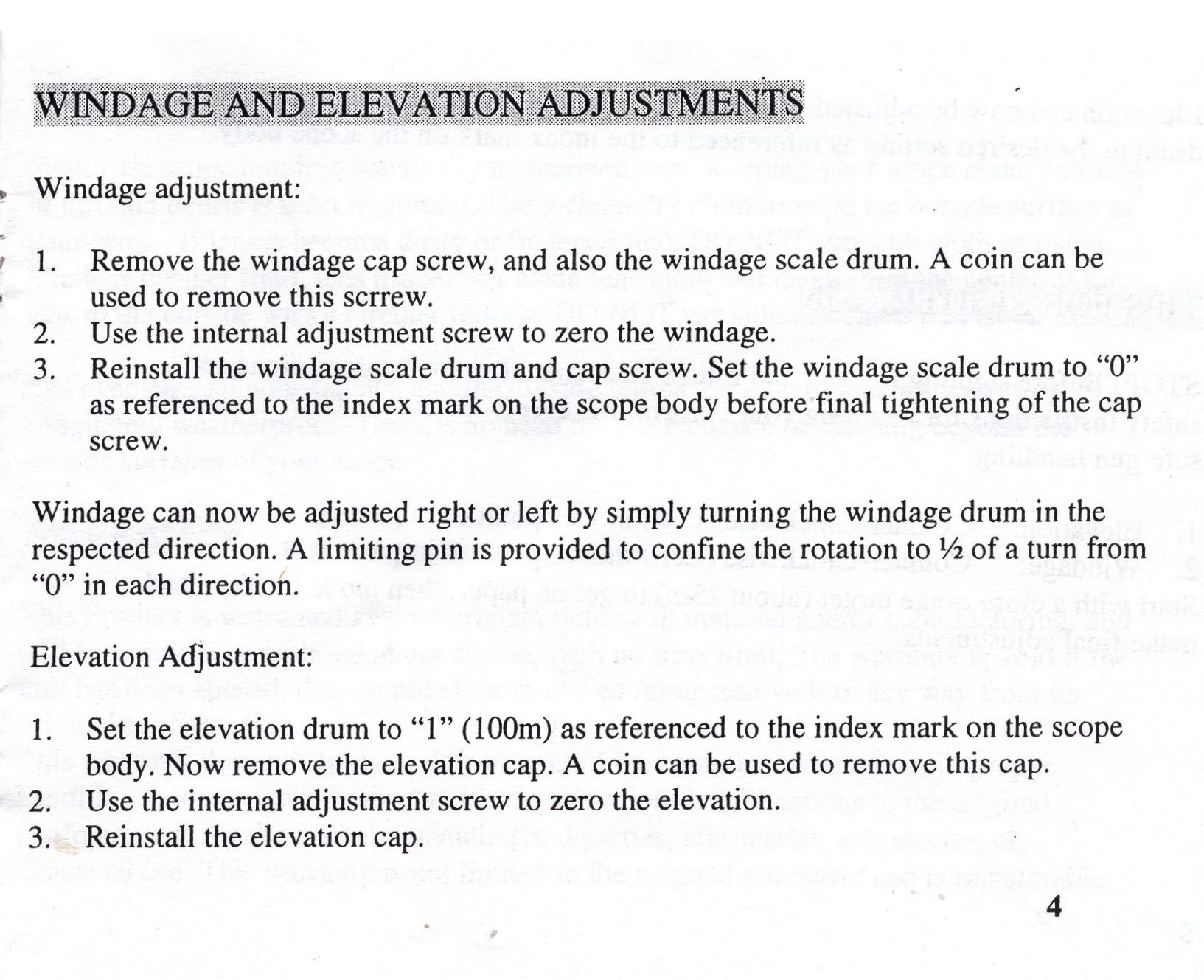

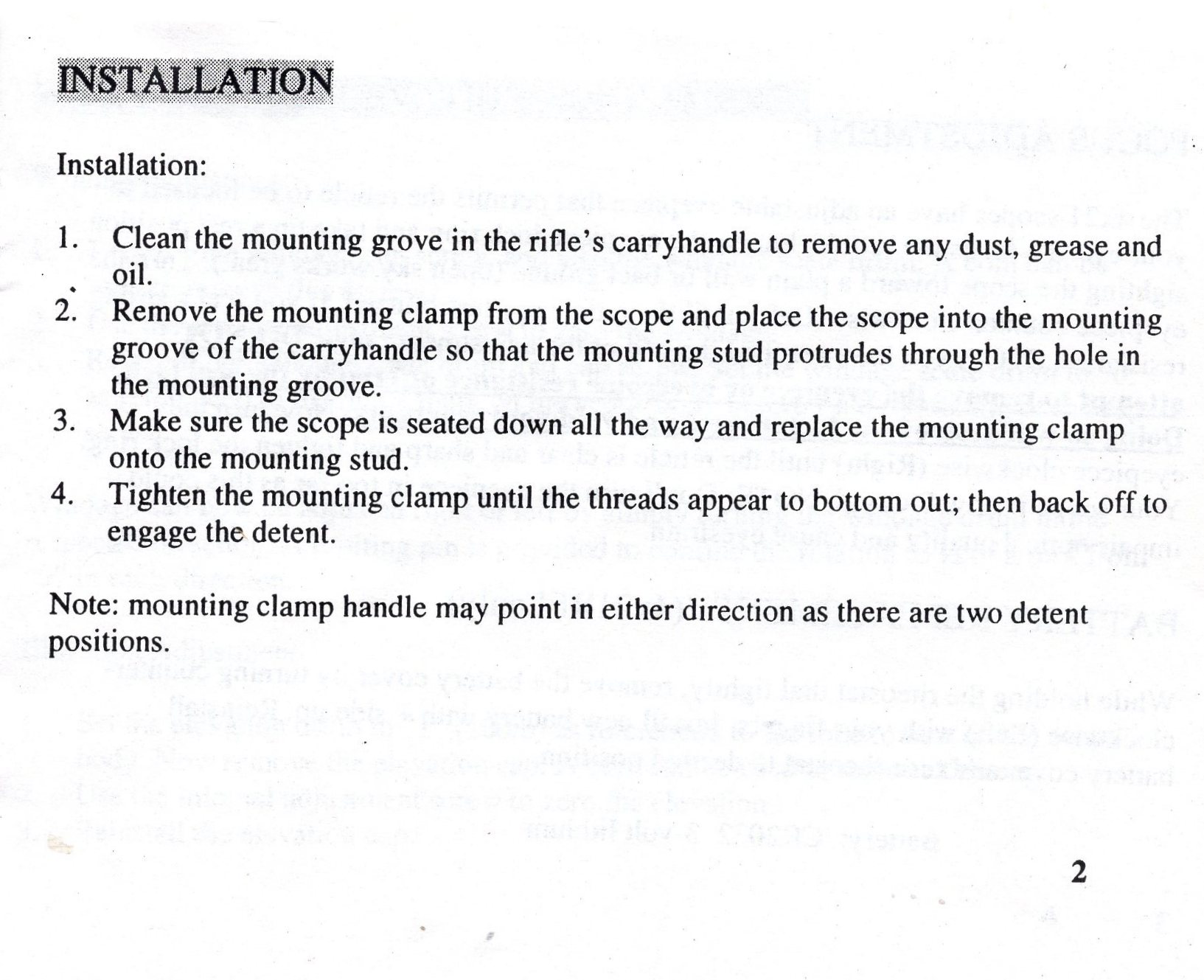

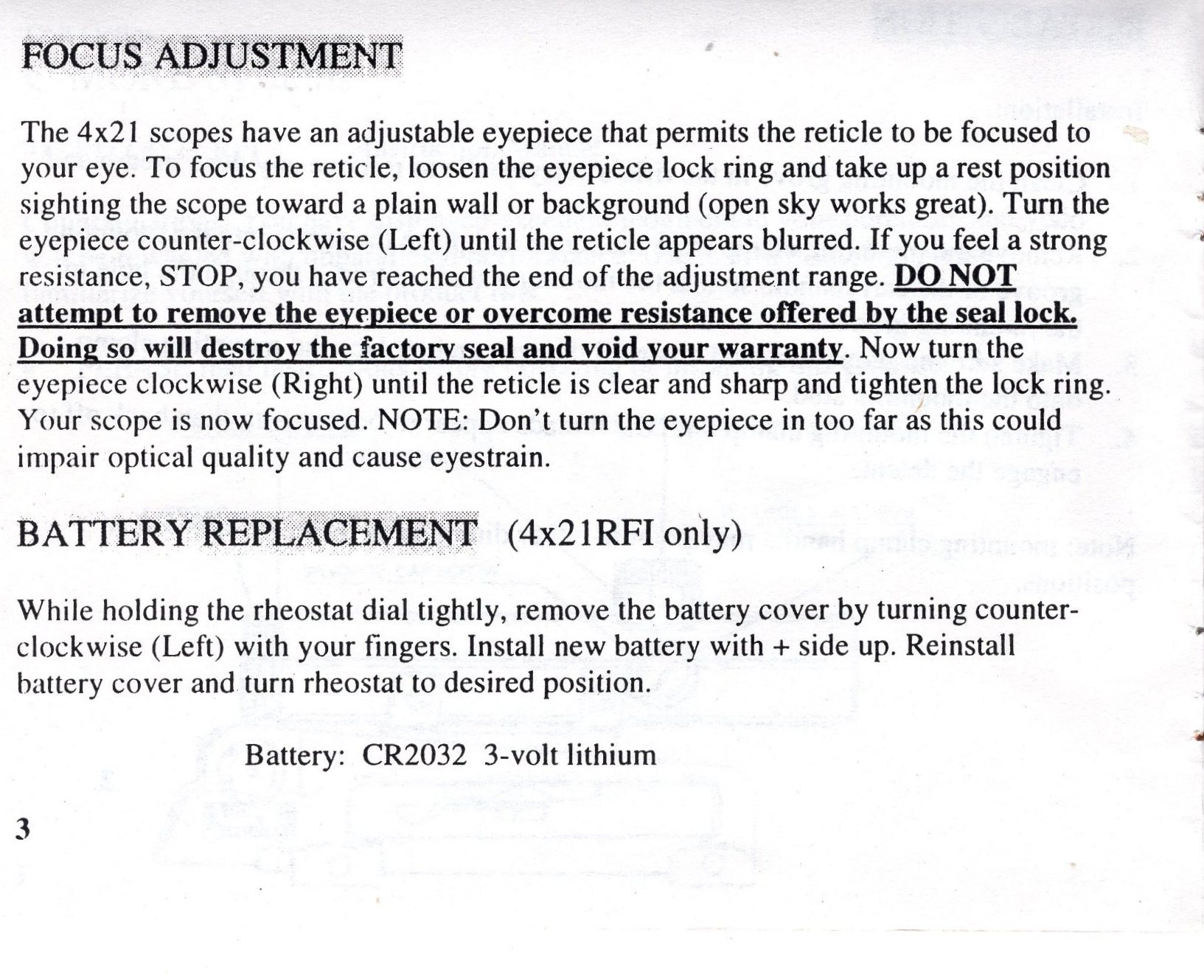

Colt 4 x 21 RFI instructions  Colt 4 x 21 RFI instructions-2

Instructions

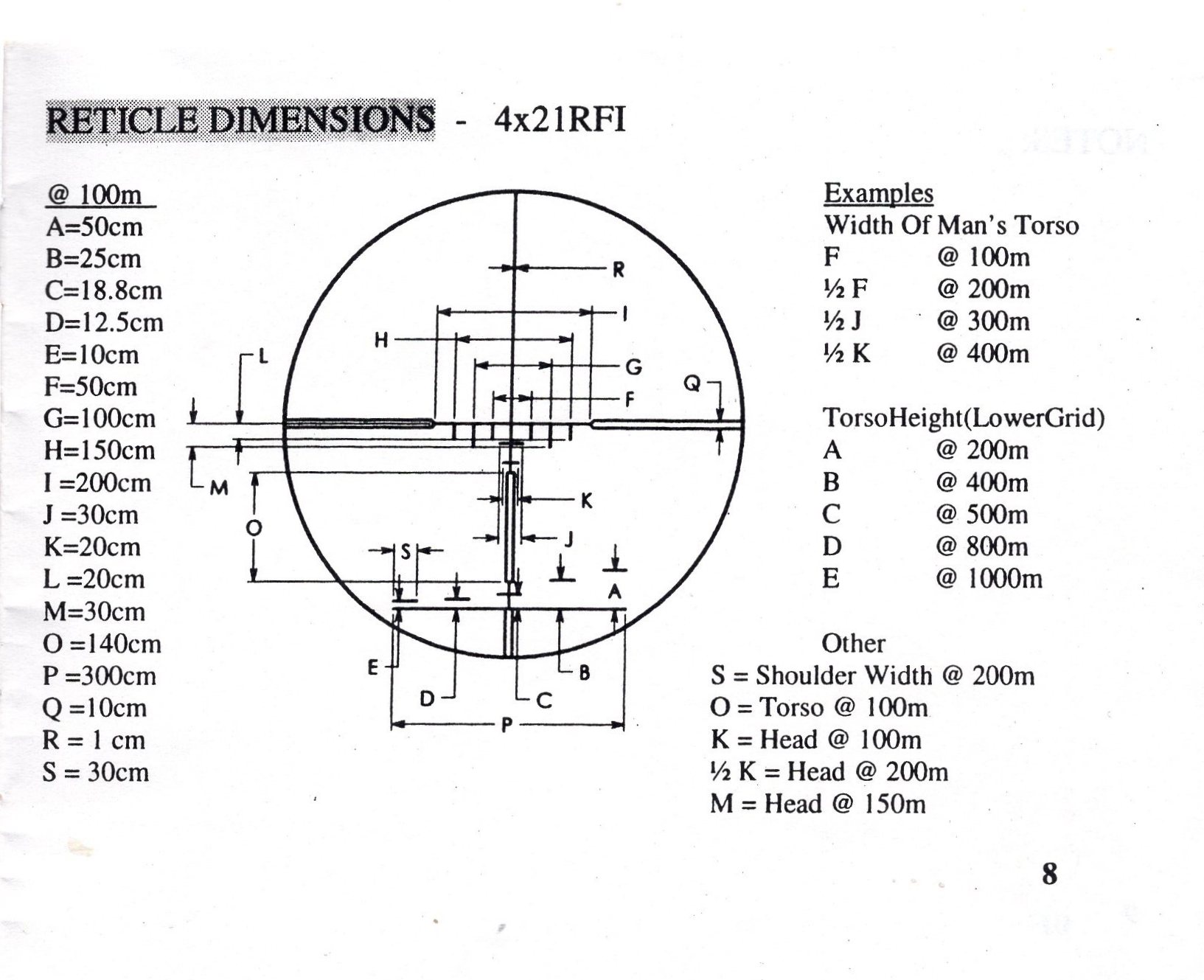

Colt Optics C-more 4 x 21 RFI instructions  Colt Optics C-more 4 x 21 RFI instructions-2

Colt Optics C-more 4 x 21 RFI instructions-3  Colt Optics C-more 4 x 21 RFI instructions-4

Colt Optics C-more 4 x 21 RFI instructions-5  Colt Optics C-more 4 x 21 RFI instructions-6

Colt Optics C-more 4 x 21 RFI instructions-7  Colt Optics C-more 4 x 21 RFI instructions-8

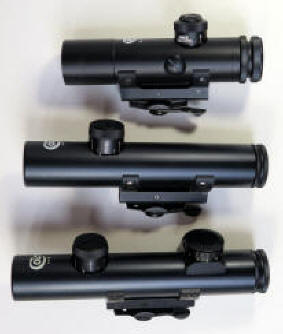

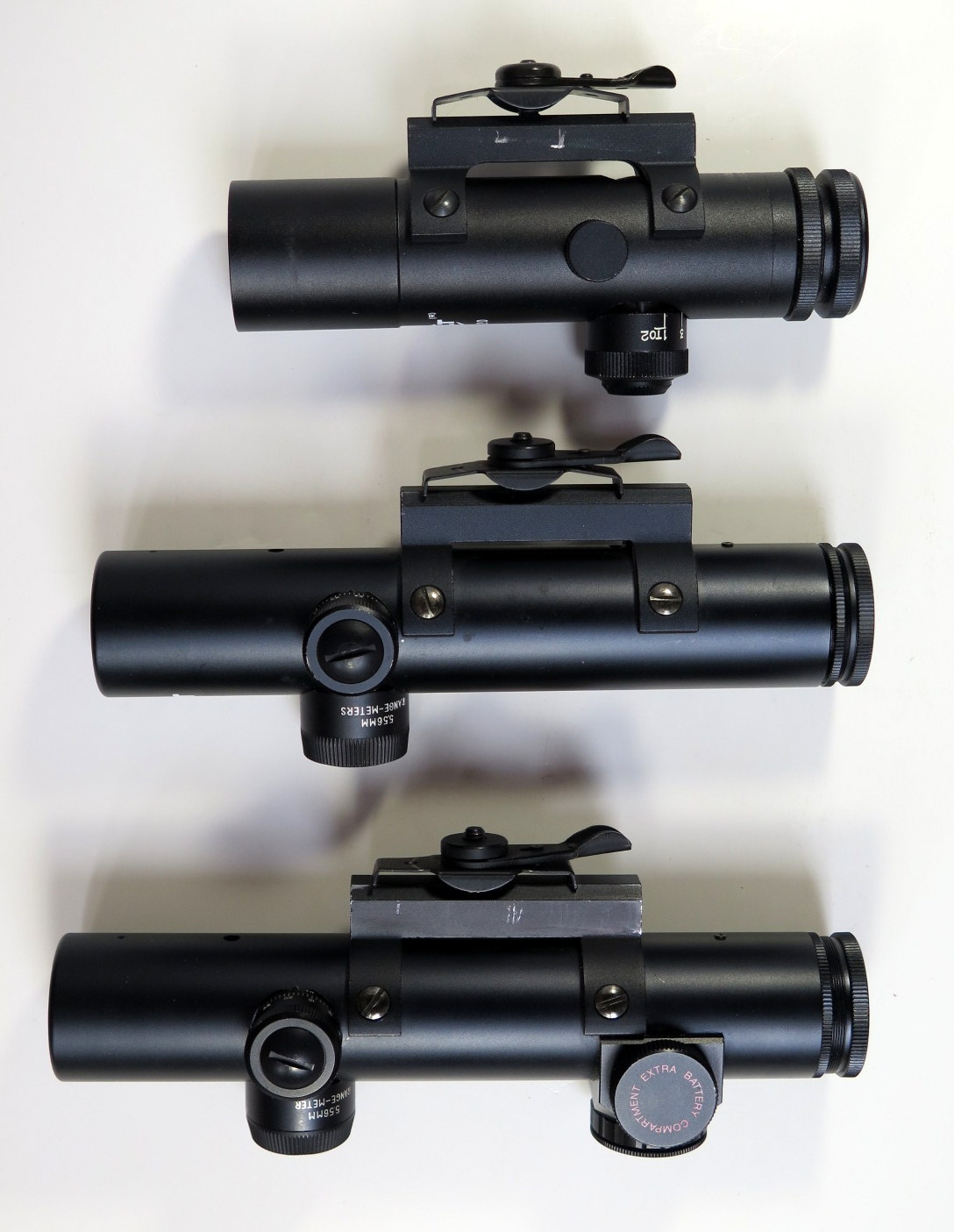

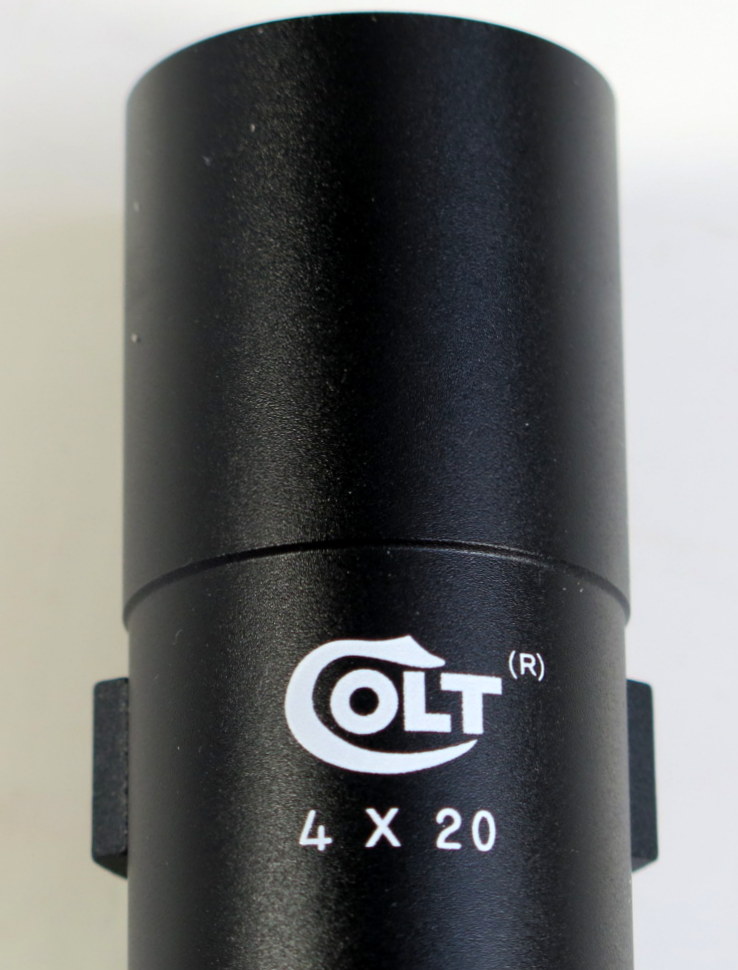

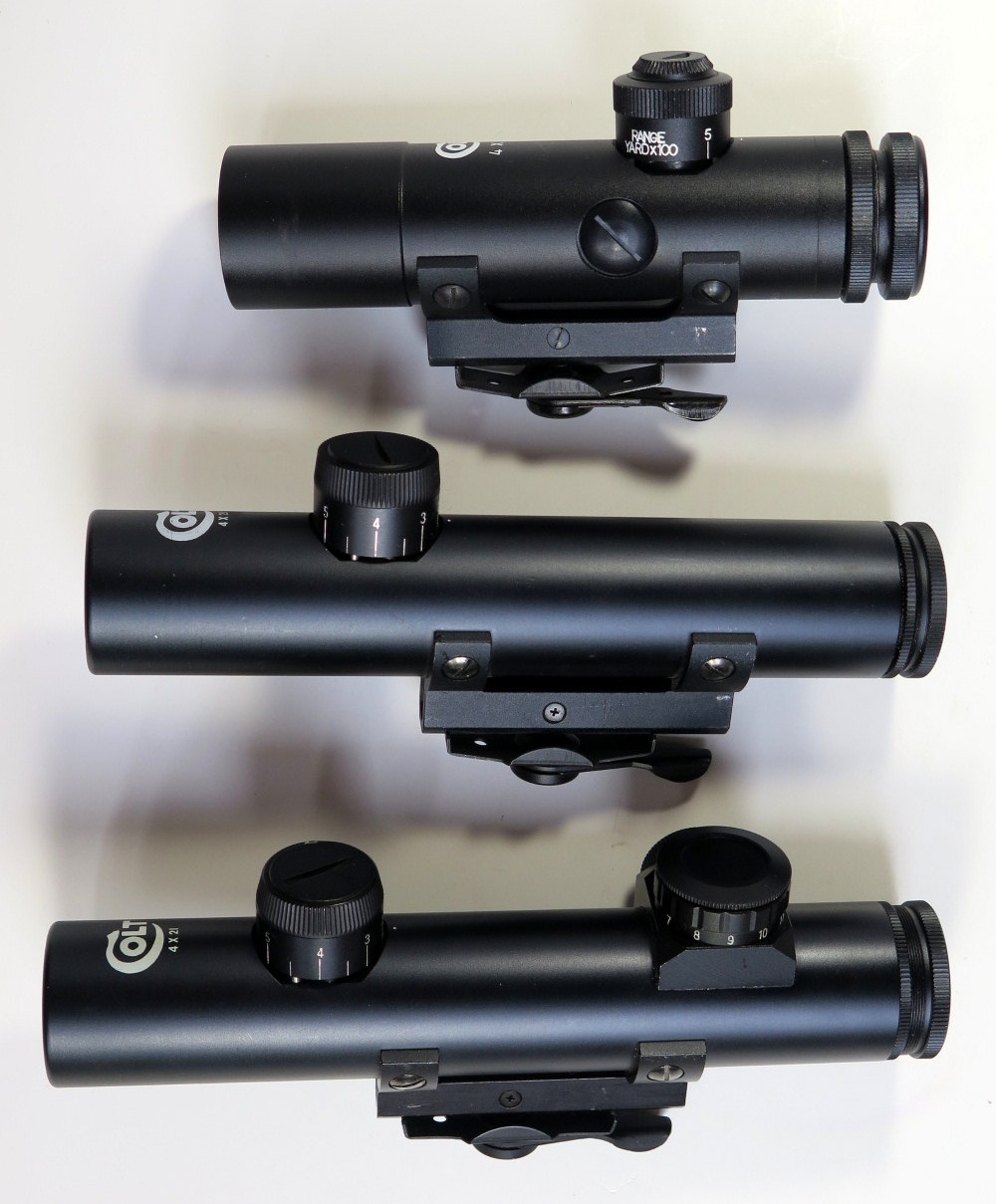

Below are Colt 4 x 20, 4 x 21, and 4 x 21 RFI scopes for size comparison

Colt 4 x 20, 4 x 21, and 4 x 21 RFI scopes for comparison -1  Colt 4 x 20, 4 x 21, and 4 x 21 RFI scopes for comparison -2


4 x 21 RFI

4 x 21

4 x 20

4 x 21 RFI

4 x 21

4 x 20


Research: Tracking down the genetics and origins of the 4x21 scope

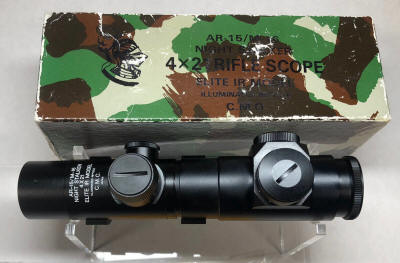

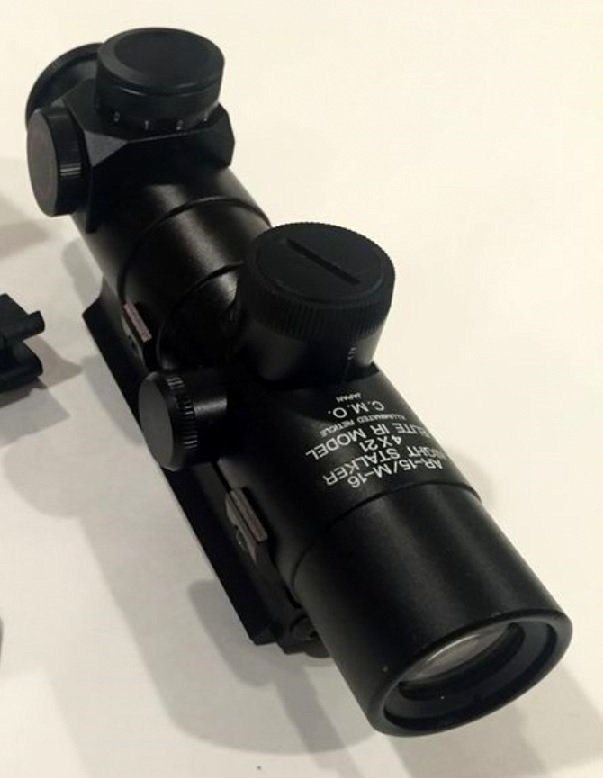

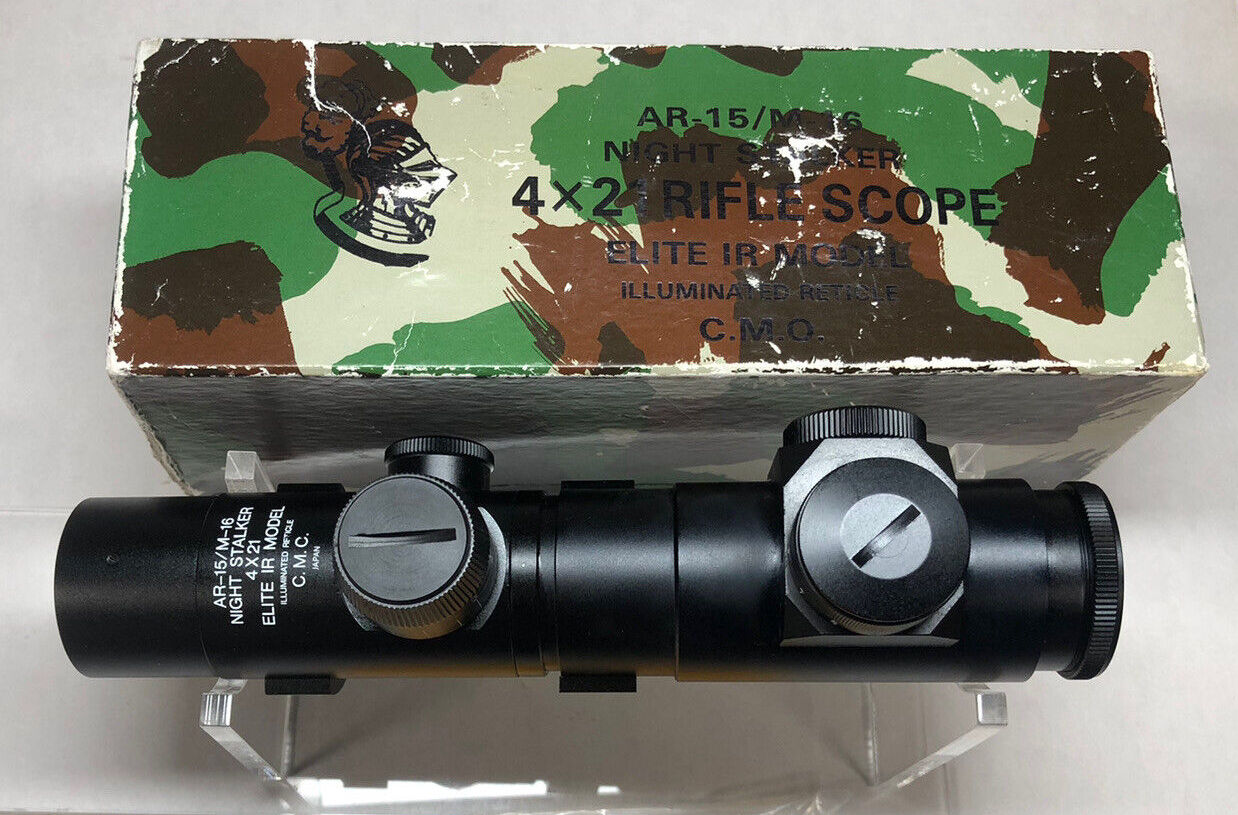

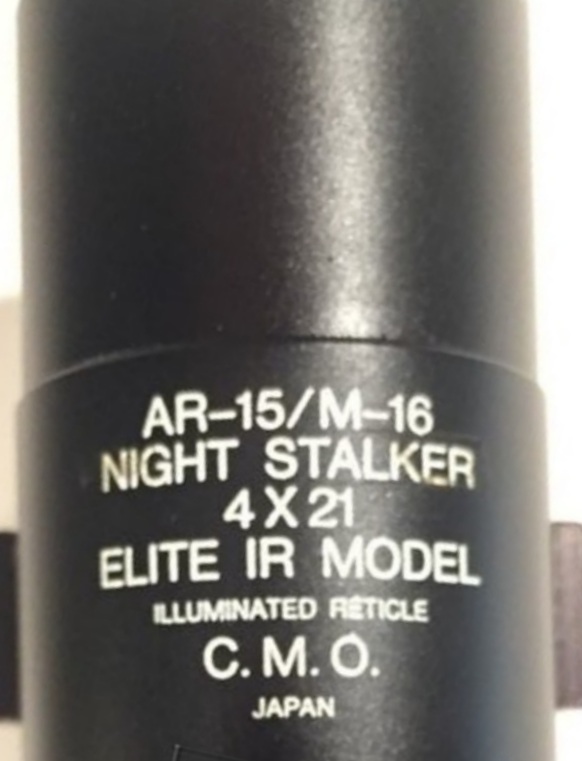

A 4x21 was listed and sold on GunsAmerica website in 2011: The description of the 4x21 refers to the scope as being a  'Combat Military Ordinance Elite (CMO) Illuminated Reticle Night Stalker 4x21'
2011 Night Force scope

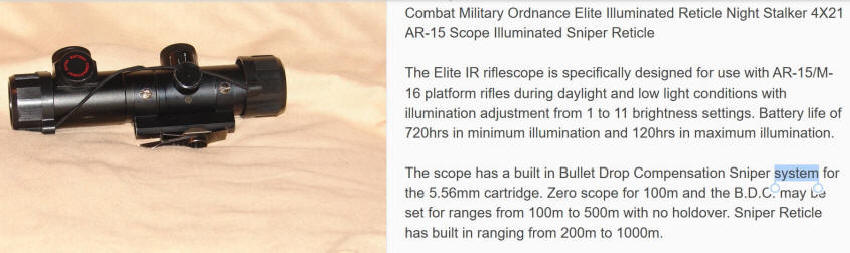

RFI article with photo

Before the advent of the flat top AR's. mounting a scope meant fastening it to the carry handle. One company came up with a solution.  They were manufactured by Hakko in Japan (now Japan Optics) and imported under the names Colt, C-More and Combat Military Ordnance. A few were imported under the Hakko name and sold by Accusport.

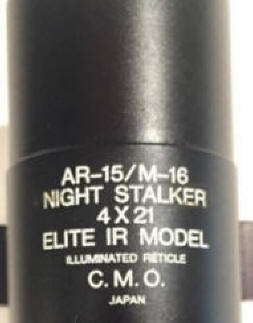

night stalker image  night stalker image with turrets

Specifically designed for use with carry handle AR15�s, but can also be used on an A3 receiver using the dovetail mount

  • IR BDC Reticle with 1 to 11 brightness adjustment

  • Battery life:720hrs (1) 120hrs (11) (1xCR2032)

  • BDC for 5.56 - Built in ranging from 200-1000M

  • Made in Japan
Mag. Object. FOV @100yds Exit Pupil Eye Relief Lenses Click @100yds Len. Wt.
4x 21mm 29 ft 5mm 3" 11 1/2" 7 3/4" 15.2 oz.


Obviously a Japanese company made both the 'C.M.O.' and 'Colt' branded 4x21 scopes

Tracking down the existence of Colt Optics

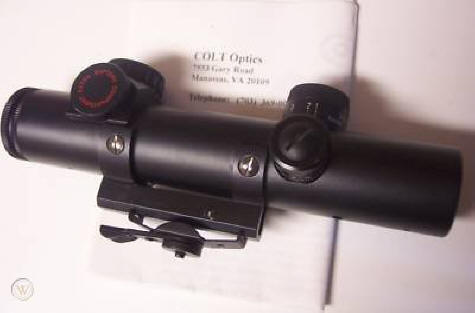

Colt Optics had the same address as C-More Systems in Manassas, Virginia.  The users manual in the background of this image below clearly shows Colt Optics in Manassas, Va. as their address and the optic with the manual is the 4x21 RFI scope.

Vertu Corporation, d/b/a C-MORE Systems, is an American manufacturer of firearms and firearm accessories. Vertu was established in Manassas, Virginia in 1993 and the C-MORE Competition name was established in 1999.  Their primary products are red dot sights, marketed as being for M1911 pistols, Glock pistols, and AR-15s.  Wikipedia

proof of Colt marked box for 4 x 21 RFI scope

Proof Colt 4x21 RFI scope was sold by a Colt division called Colt Optics and made in Japan.

Proof of the existence of Colt Optics from a discussion about another (not the 4x21) scope by an employee at C-More Systems:

"These were demo scopes for the military. It is a C-More Systems scope branded by Colt Optical."
