Colt Firearms Collector





1917



Colt's Double-Action Revolver Caliber .45 M1917

(Scarce)



Form G-10; 4.75 x 7,25 in. 20 numbered pages,

Peck & Co. logo on last page



 Colt's Patent Fire Arms Mfg. Co.

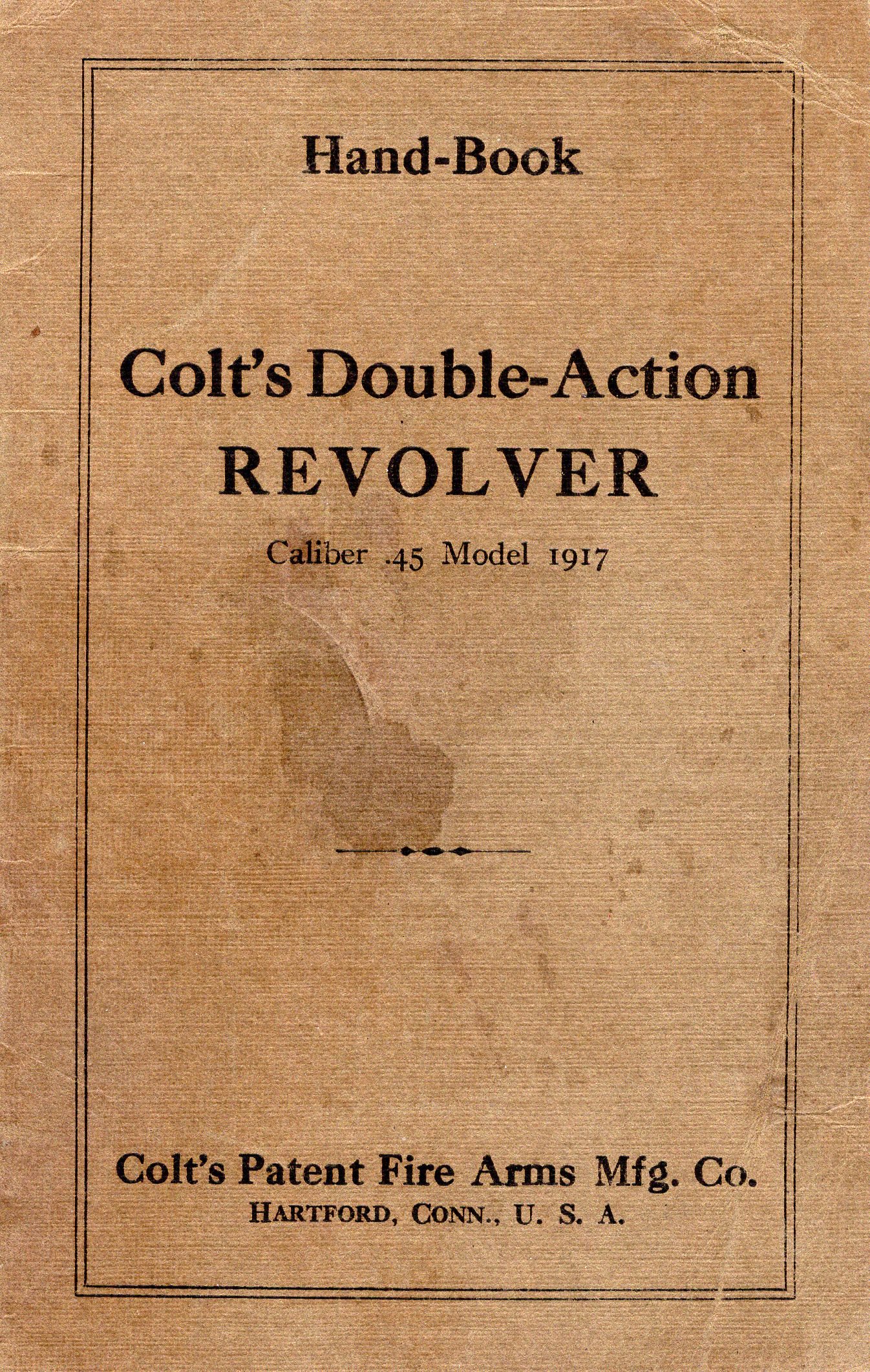

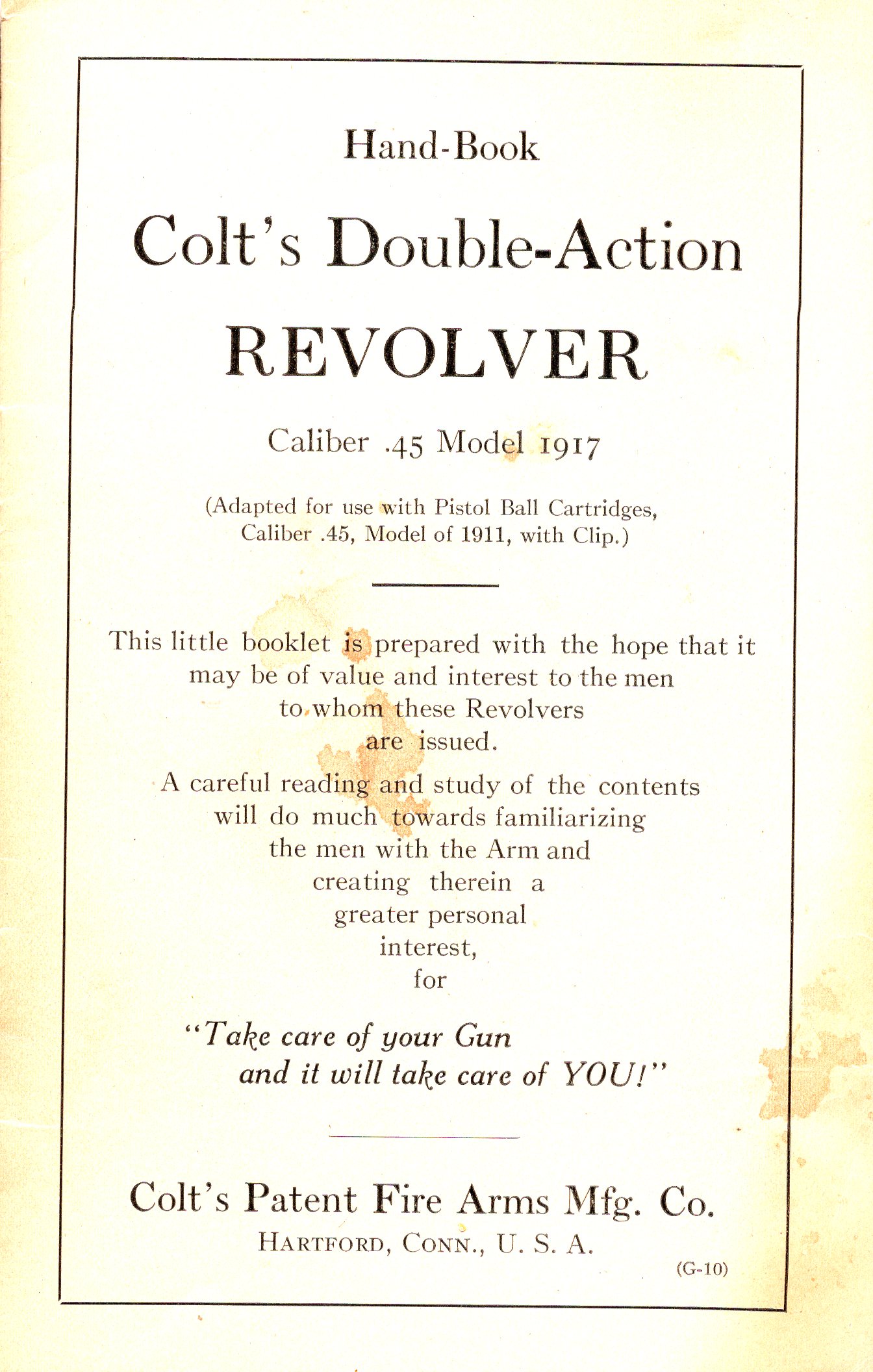

Colt M1917 double action .45 cal. revolver handbook cover Colt M1917 double action .45 cal. revolver handbook page 1

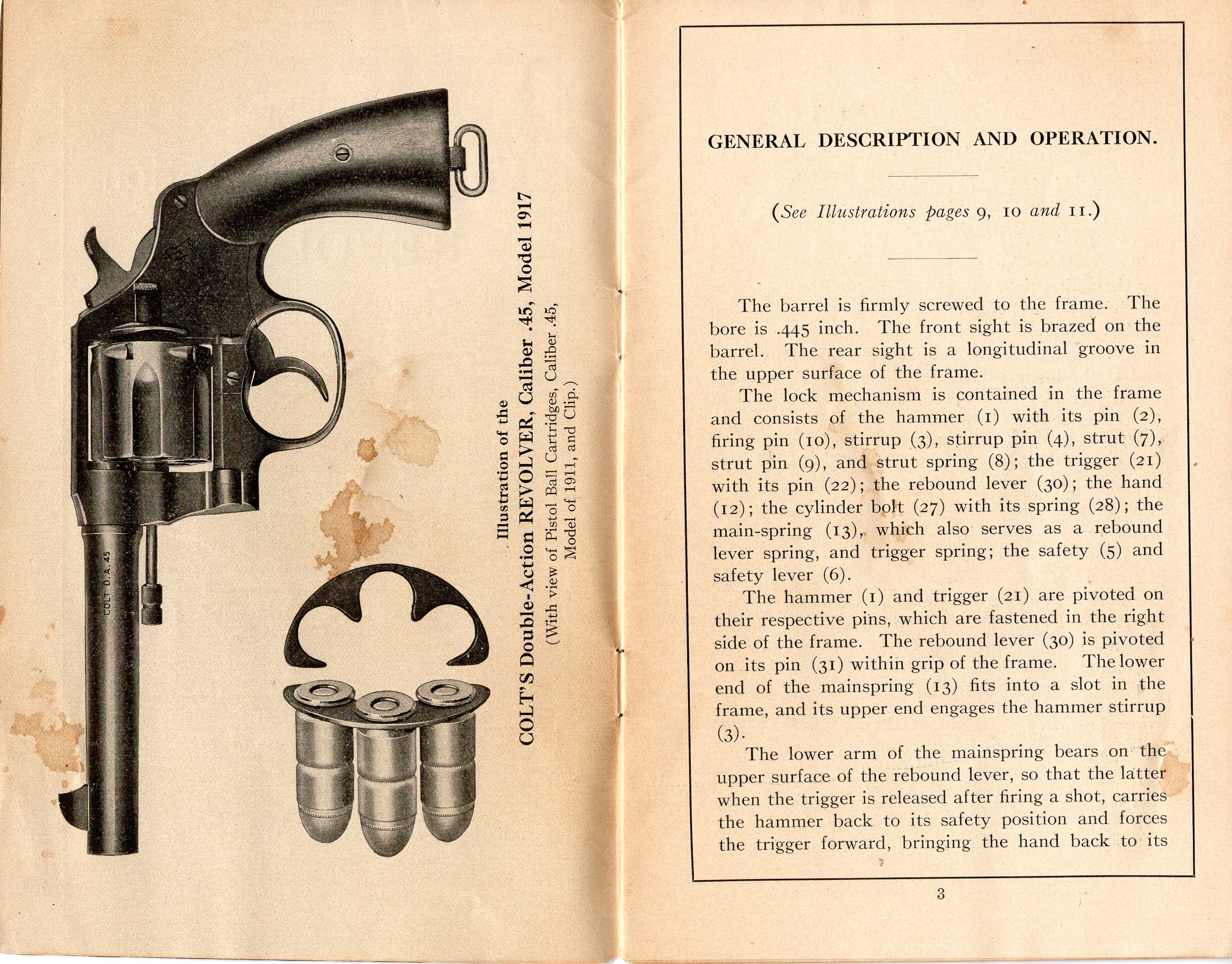

Colt M1917 double action .45 cal. revolver handbook page 2=3

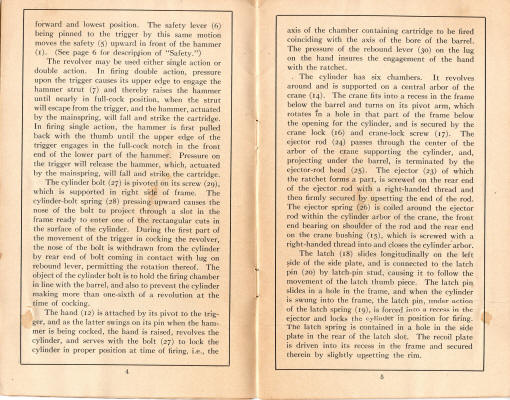

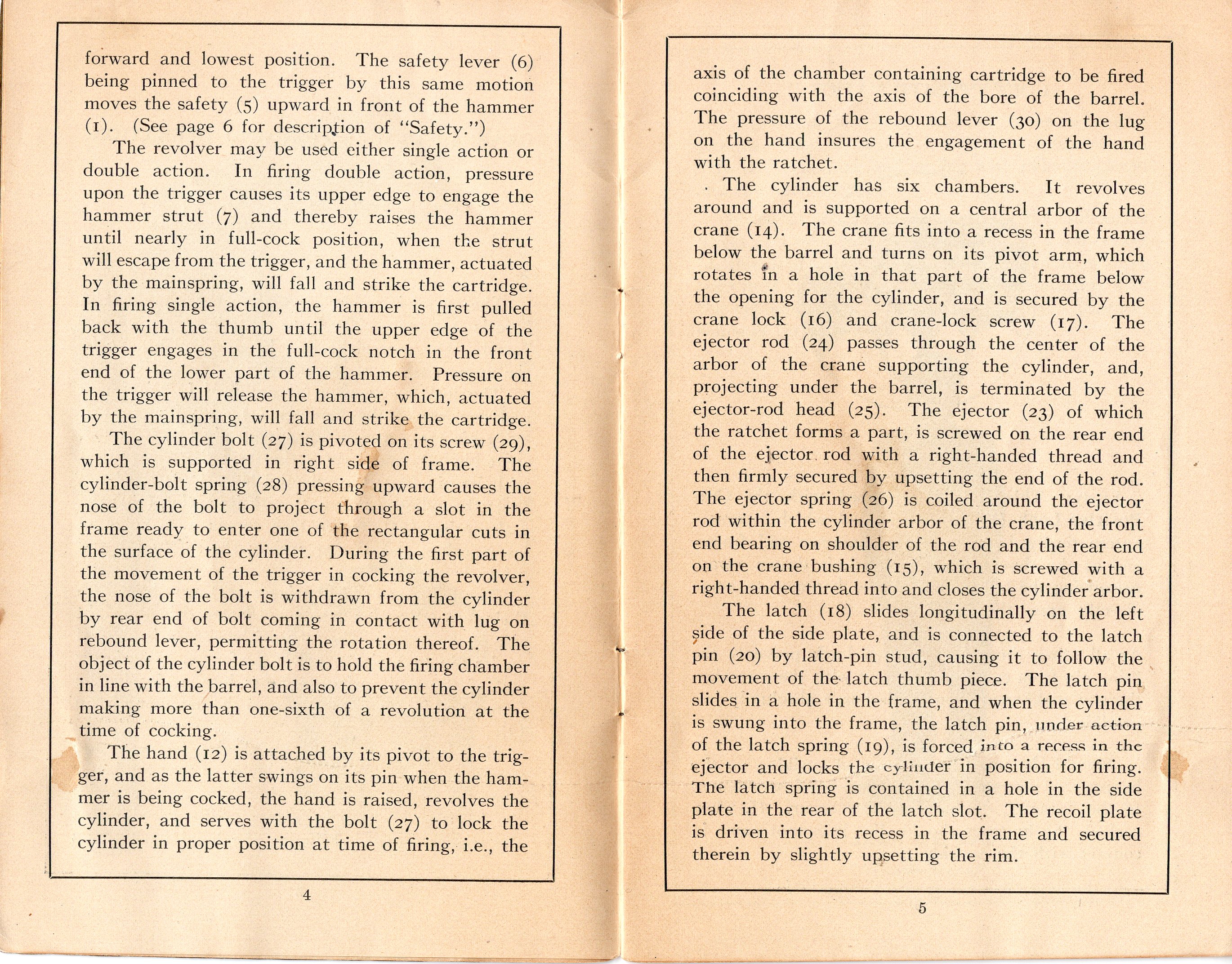

Colt M1917 double action .45 cal. revolver handbook page 4-5

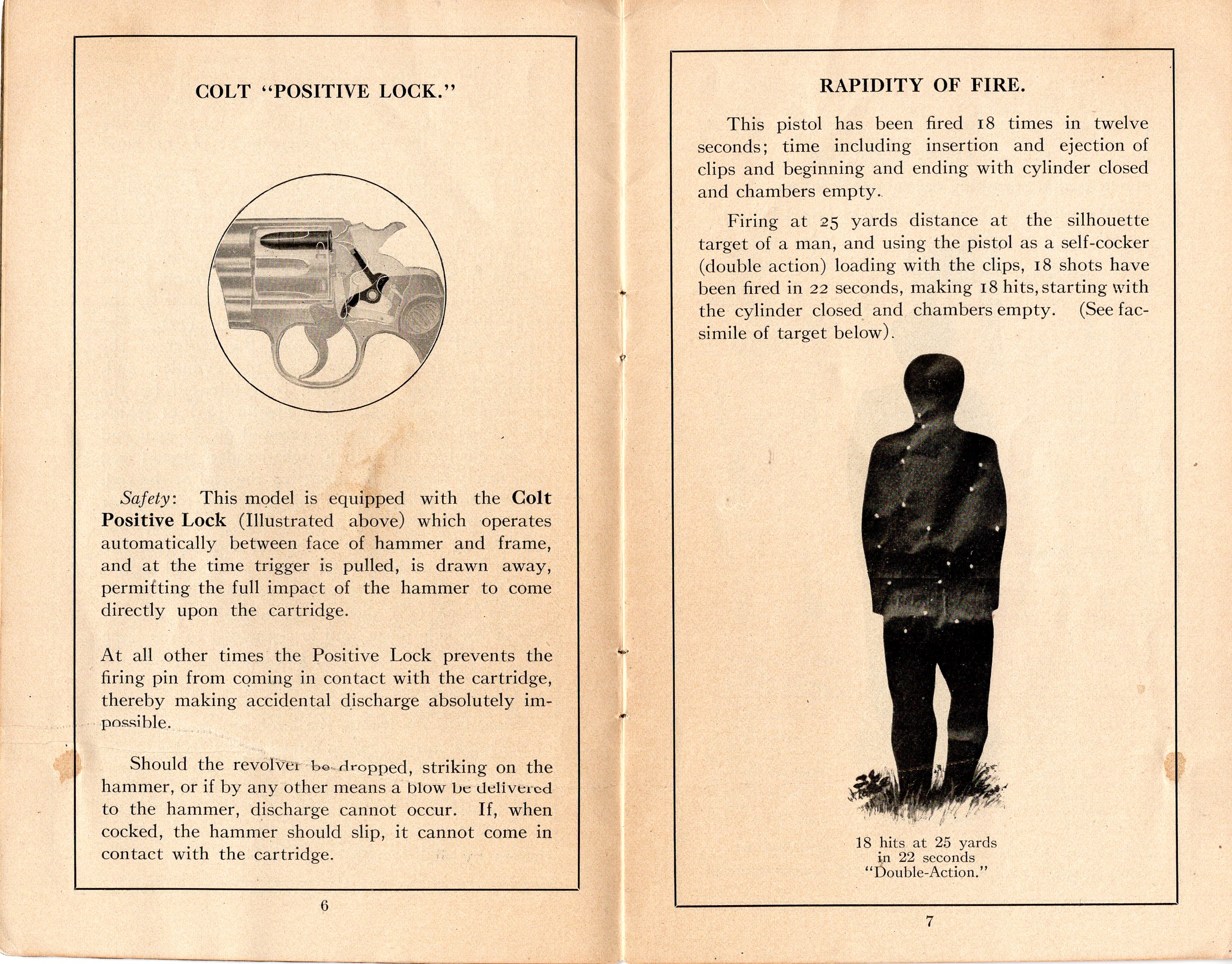

Colt M1917 double action .45 cal. revolver handbook page 6-7

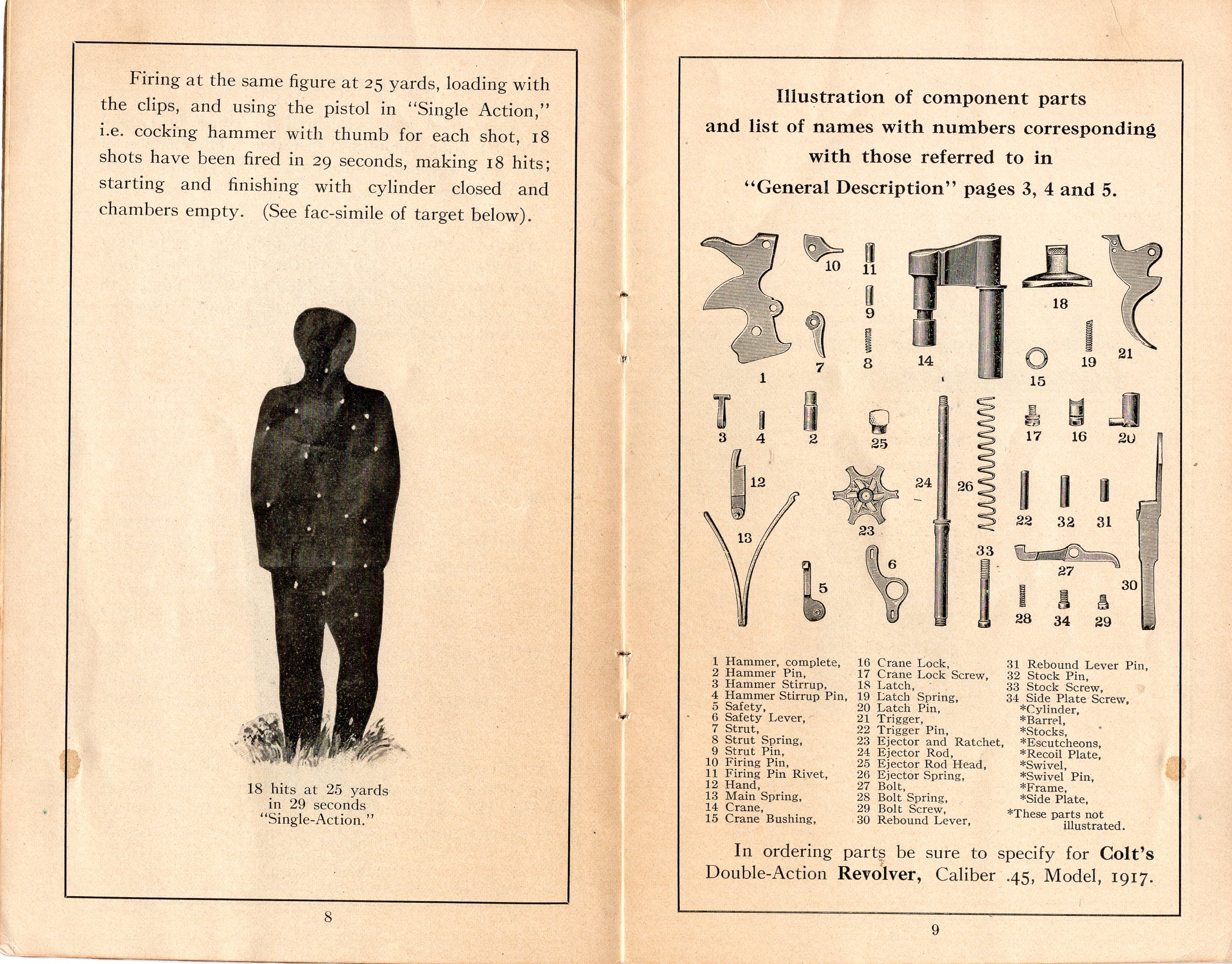

Colt M1917 double action .45 cal. revolver handbook page 8-9

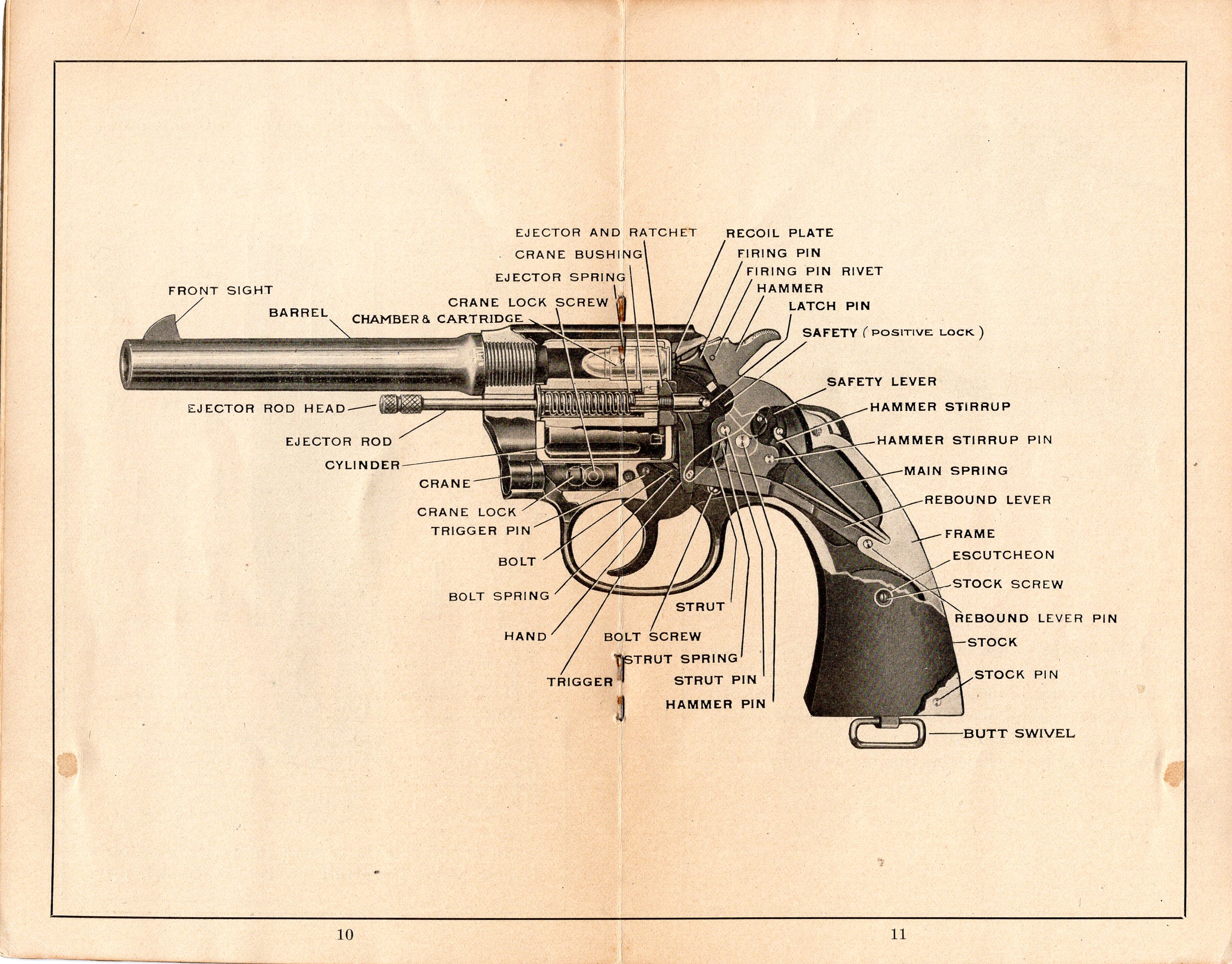

Colt M1917 double action .45 cal. revolver handbook diagram

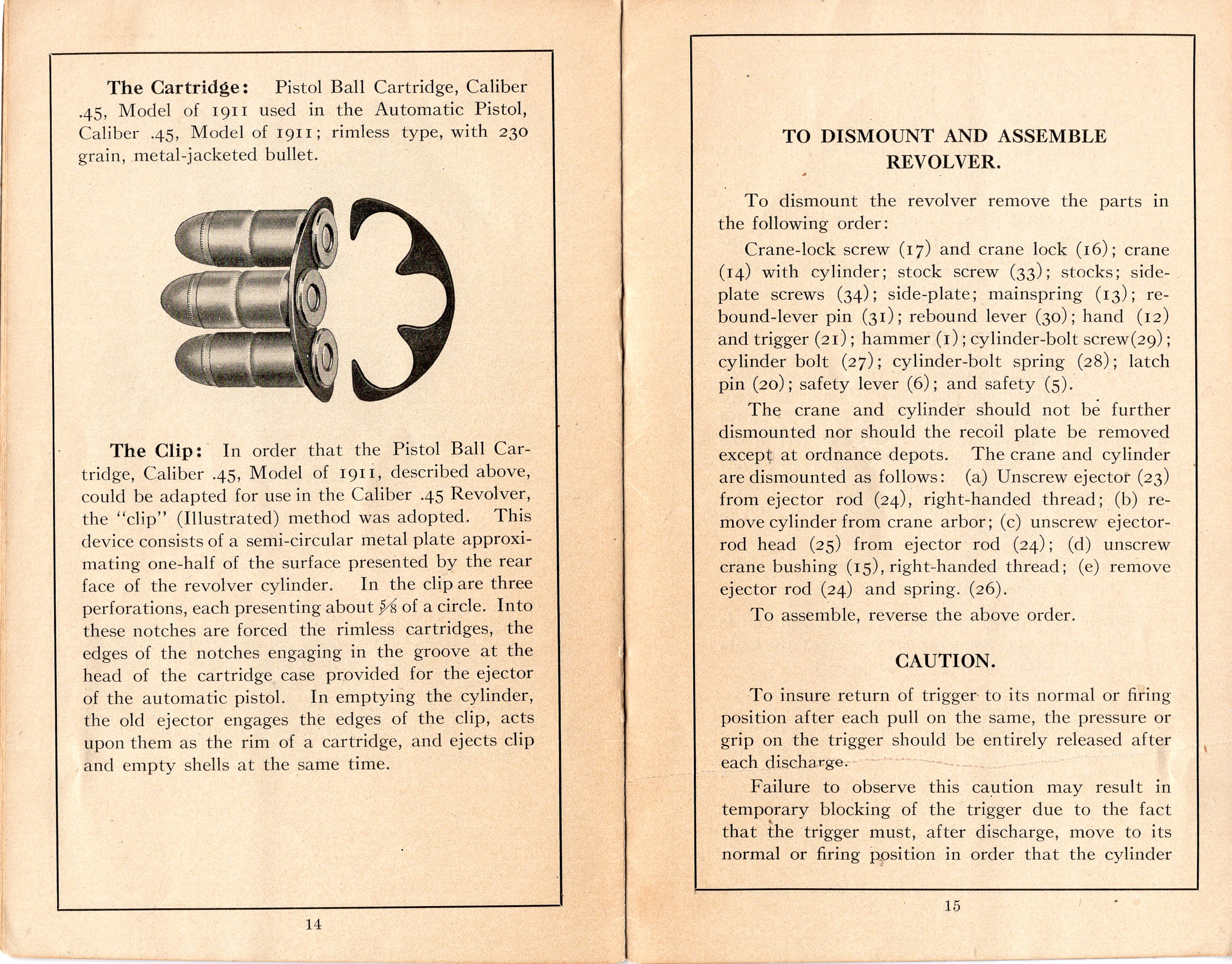

Colt M1917 double action .45 cal. revolver handbook page 8-9

Colt M1917 double action .45 cal. revolver handbook page 10-11

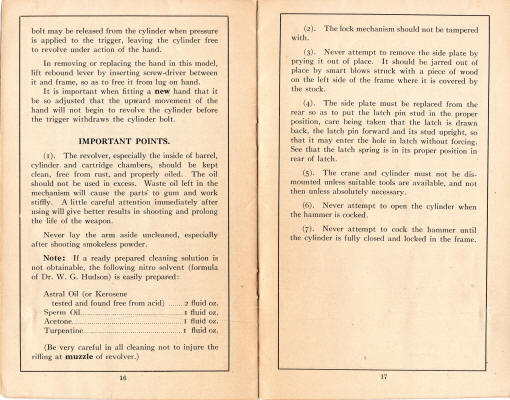

Colt M1917 double action .45 cal. revolver handbook page 11-12

Colt M1917 double action .45 cal. revolver handbook page last

1917 R. S. Peck & Co. / Hartford, Conn.

R. S. Peck & Co. / Hartford, Conn.
